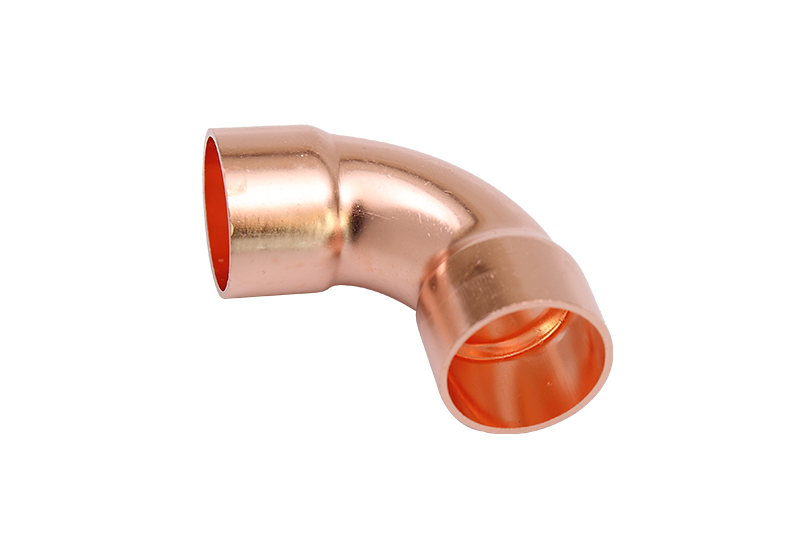

Copper Elbow

Copper elbows are critical components in the HVACR (Heating, Ventilation, Air Conditioning, and Refrigeration) industry, designed to change the direction of copper pipes within a system. They are manufactured to ensure a perfect fit and secure connection, facilitating smooth airflow or refrigerant circulation.


Availability:



Inquire Add to Basket

Product Description

Material: Made from high-quality copper, these elbows are known for their durability, corrosion resistance, and excellent thermal conductivity, which is vital for efficient heat exchange in HVACR systems.

Types: Available in both 90-degree and 45-degree angles to accommodate various installation requirements and layout designs.

Applications: Widely used in air conditioning systems for residential, commercial, and industrial applications, as well as in heating and refrigeration systems where the flexibility and efficiency of copper are essential.

Sizes: Offered in various sizes to match different pipe diameters, ensuring a wide range of applications.

Pressure Ratings: Designed to withstand the pressure demands of HVACR systems, with maximum working pressures typically up to 10 bar.

Temperature Range: Suitable for operation in a broad temperature range, from 5°C to 110°C for plumbing systems and 5°C to 90°C for gas and hydrocarbons systems.

Installation: Copper elbows can be installed using various joining methods, including soldering, flaring, and swaging, depending on the specific requirements of the system and the preferences of the installer.

Inner diameter *wall thickness	Serial number	Inner diameter *wall thickness	Serial number
Ø6*0.8	XF-1001	Ø28.6*0.9	XF-1015
Ø6.35*0.8	XF-1002	Ø32*1	XF-1016
Ø8*0.8	XF-1003	Ø35*1	XF-1017
Ø9.52*0.8	XF-1004	Ø38*1.2	XF-1018
Ø10*0.8	XF-1005	Ø42*1.5	XF-1019
Ø12*0.8	XF-1006	Ø45*1.5	XF-1020
Ø12.7*0.8	XF-1007	Ø50*1.5	XF-1021
Ø15*0.8	XF-1008	Ø54*1.5	XF-1022
Ø15.88*0.8	XF-1009	Ø67*1.8	XF-1023
Ø18*0.8	XF-1010	Ø76*1.8	XF-1024
Ø19.05*0.8	XF-1011	Ø80*1.8	XF-1025
Ø22*0.8	XF-1012	Ø85*2	XF-1026
Ø25*0.9	XF-1013	Ø89*2	XF-1027
Ø28*0.9	XF-1014	Ø108*2.5	XF-1028
