Material: Made from high-quality copper, known for its excellent conductivity and corrosion resistance, ensuring long-term reliability and performance.
Sizes: Available in a range of sizes to accommodate different pipe diameters, typically from 1/4" to 8" or more, ensuring compatibility with various system configurations.
Applications: Widely used in residential, commercial, and industrial HVACR systems for both new installations and upgrades.
Design: The smooth interior surface minimizes turbulence and pressure drop, optimizing the performance of the air conditioning system.
Material Composition: Copper tubes are often made from UNS alloy C12200, which contains phosphorous to enhance the strength and durability of the joints.
Pressure Ratings: Designed to withstand the pressure demands of modern HVACR systems, with ratings typically up to 700 psig.
Temperature Range: Suitable for operation in a broad temperature range, accommodating the needs of various refrigerants and system requirements.

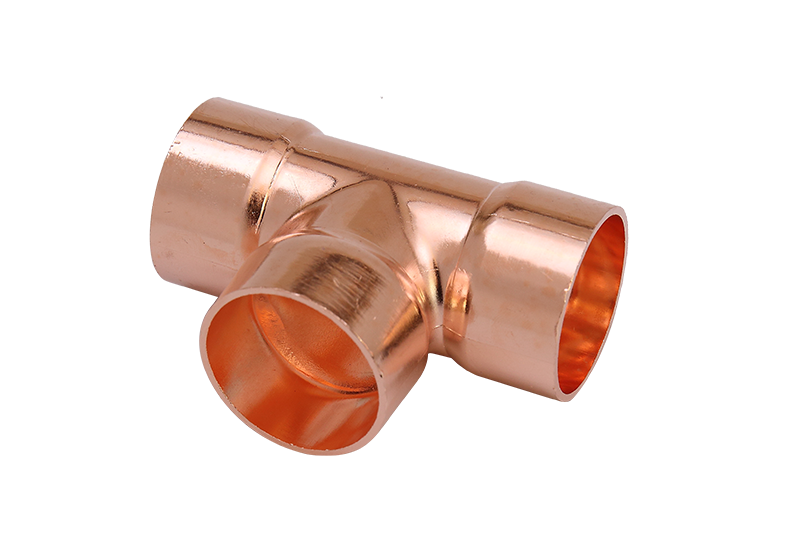

Installation: Copper tees can be installed using various joining methods, including soldering, brazing, or the use of solder ring connections. They are easy to install, saving time and effort for HVAC technicians.
Inner diameter
*wall thickness | Serial number
| Inner diameter
*wall thicknes | Serial number
|
| Ø6*0.8 | XF-1029 | Ø28.6*0.9 | XF-1043 |
| Ø6.35*0.8 | XF-1030 | Ø32*1 | XF-1044 |
| Ø8*0.8 | XF-1031 | Ø35*1 | XF-1045 |
| Ø9.52*0.8 | XF-1032 | Ø38*1.2 | XF-1046 |
| Ø10*0.8 | XF-1033 | Ø42*1.5 | XF-1047 |
| Ø12*0.8 | XF-1034 | Ø45*1.5 | XF-1048 |
| Ø12.7*0.8 | XF-1035 | Ø50*4.5 | XF-1049 |
| Ø15*0.8 | XF-1036 | Ø54*1.5 | XF-1050 |
| Ø15.88*0.8 | XF-1037 | Ø67*1.8 | XF-1051 |
| Ø18*0.8 | XF-1038 | Ø76*1.8 | XF-1052 |
| Ø19.05*0.8 | XF-1039 | Ø80*1.8 | XF-1053 |
| Ø22*0.8 | XF-1040 | Ø85*2 | XF-1054 |
| Ø25*0.9 | XF-1041 | Ø89*2 | XF-1055 |
| Ø28*0.9 | XF-1042 | Ø108*2.5 | XF-1056 |
