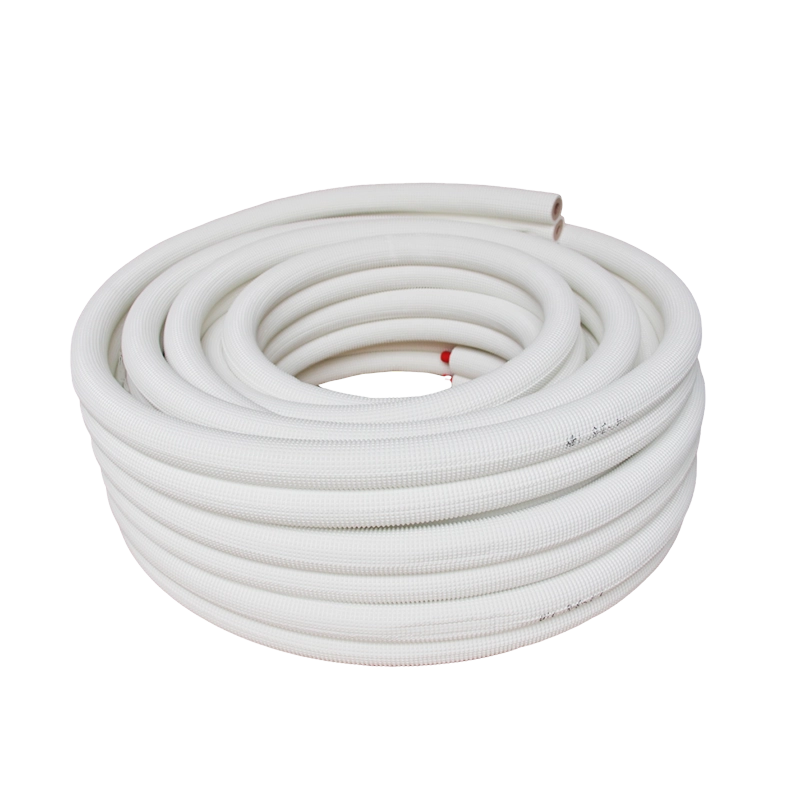

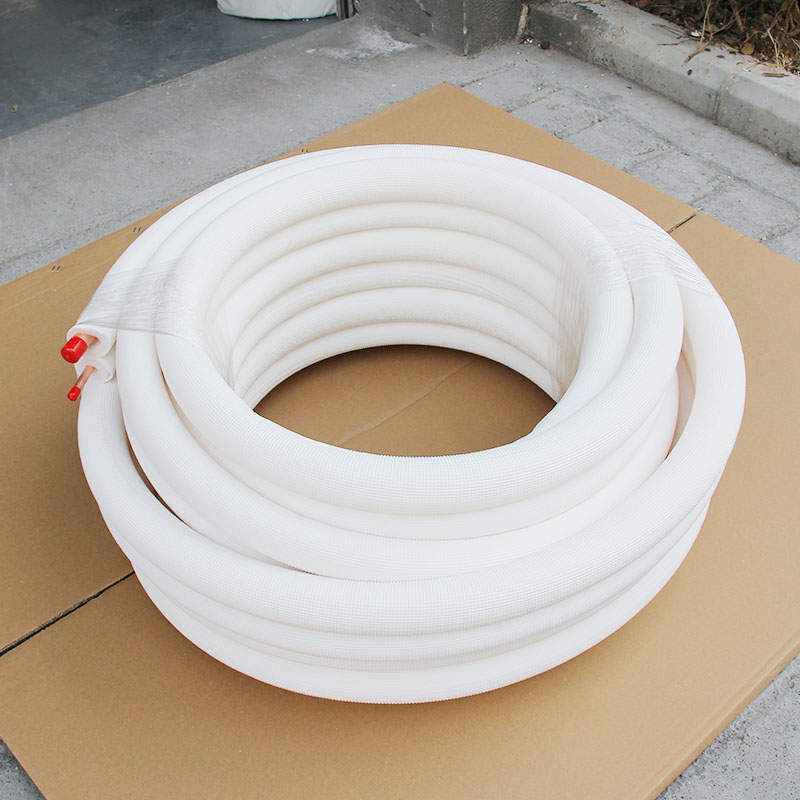

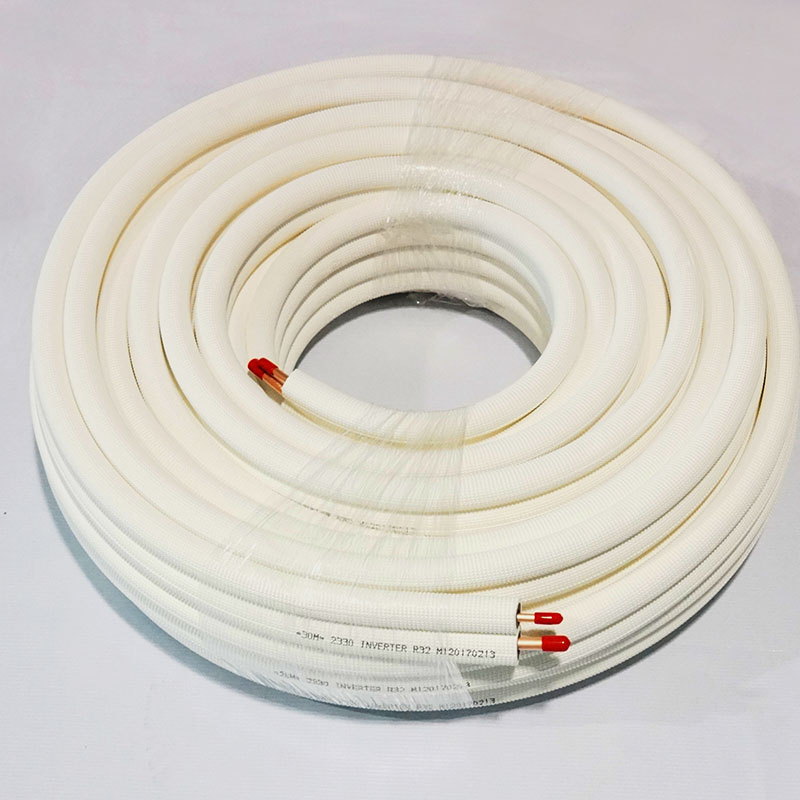

Our insulated copper pipe is designed for split air conditioning systems. It connects outdoor and indoor units for efficient heat exchange.
Made from high-quality, soft copper, the pipe has excellent durability. The copper composition is Cu ≥99.96%, ensuring high conductivity and reliability.
We use PE 3-layer embossed insulation. The insulation wall thickness ranges from 8mm to 20mm. Colors available include white, black, green, blue, and red. Customization options for high-temperature resistant and flame-retardant insulation are also available.
The pipe wall thickness varies from 0.4mm to 1.5mm. It is available in lengths from 15 to 50 meters. Both rubber insulation and PE foam insulation are offered for different installation needs.
This product is suitable for split air conditioning installation and HVAC systems. It comes in secure carton packaging for safe transport. Ideal for household air conditioning, central AC maintenance, and other cooling equipment.
| Parameter | Value |
|---|---|
| Brand Name | Lukwom HVAC |
| Composition | Cu ≥99.96%, P: 0.015-0.040% |
| Temper | Soft Annealed |
| Standard | ASTM B280, EN 12735-2, AS/NZS 1571, JIS H3300 |
| Copper Pipe Wall Thickness | 0.4-1.5 mm |
| Insulation Type | PE 3-layer, embossed surface |
| Insulation Wall Thickness | 8 mm, 10 mm, 13 mm, 15 mm, 20 mm |
| Insulation Colors | White, Black, Green, Blue, Red |
| Insulation Material | High-temperature resistant, flame-retardant (optional) |
| Insulation Options | Rubber insulation, PE foam insulation |
| Length | 15 - 50 meters |
| Material | Full copper |
| Packaging | Carton box |
| Application | Split aircon, AC installation, HVAC |
Region | Copper | Insulation |
Japan | JIS H3300:2006 | JIS A9511: 2009A PE-C-2 PEF8/JCDA0009 |
Australia | AS/NZS 1571 | AS/NZS 1530.3 |
America | ASTM B280-03 | UL 94 HF-1 |
Europe | EN 12735-1 | EN 13501-1 BL-S1, d0 |
France | EN 12735-1 | EN 13501-1 M1 |
A/C Model | Cu Pipe Size | Cu Pipe OD. mm | Cu Pipe WT. mm | Insulation tube ID. mm | Insulation tube WT. mm | Normal Length m |
1 HP | 1/4" | ∅6.35 | 0.76 | ∅8.0 | 8 | 15m/20m/30m |
3/8" | ∅9.52 | 0.81 | ∅12.0 | 8 | ||
1.5 HP | 1/4" | ∅6.35 | 0.76 | ∅8.0 | 8 | |
1/2" | ∅12.70 | 0.81 | ∅15.0 | 10 | ||
2.5 HP | 1/4" | ∅6.35 | 0.76 | ∅8.0 | 8 | |
5/8" | ∅15.88 | 0.89 | ∅18.0 | 10 | ||
3 HP | 3/8" | ∅9.52 | 0.81 | ∅12.0 | 8 | |
5/8” | ∅15.88 | 0.89 | ∅18.0 | 10 | ||
4 HP | 3/8" | ∅9.52 | 0.81 | ∅12.0 | 8 | |
3/4" | ∅19.05 | 0.89 | ∅22.0 | 10 | ||
5 HP | 1/2" | ∅12.70 | 0.81 | ∅15.0 | 8 | |
3/4" | ∅19.05 | 0.89 | ∅22.0 | 10 |
High-Quality Material
Made with durable copper, ensuring excellent corrosion resistance. Complies with ASTM B280, EN 12735-2, AS/NZS 1571, and JIS H3300 standards.
Customizable Options
Available in white, black, and custom colors. Blends well with various home décor styles. Offers flexible choices for different customer needs.
Wide Size Range
Lengths range from 1 to 30 meters. Suitable for diverse air conditioning systems and installation requirements, including residential and commercial setups.
Efficient Connection
Pre-insulated copper pipe designed for effective AC system connections. Ideal for ductless mini-splits, heat pumps, and central air units. Ensures a secure, leak-free connection for maintaining indoor comfort.
Reliable Performance
Provides a stable, long-term solution for HVAC systems. Reduces heat loss and improves energy efficiency, supporting optimal system operation.
Multiple Insulation Options
Offers PE 3-layer insulation or rubber insulation. High-temperature resistant and flame-retardant variants are available for enhanced safety.
Easy Installation
Lightweight and flexible design simplifies installation. Can be cut to any length, minimizing waste and reducing labor costs.
Safe Packaging
Shipped in sturdy cartons to protect the product during transportation. Prevents damage and ensures the pipe arrives in perfect condition.
Choosing LUKWOM means partnering with a trusted industry leader in HVAC solutions. We deliver consistent quality and innovative products to meet the highest industry standards.
With years of experience, LUKWOM has become a recognized name in HVAC manufacturing. We have a strong management and technical team, ensuring top-notch products and services.
Our company has been rated as an excellent and high-tech enterprise in the HVAC sector. We are a reliable supplier to major air conditioning brands in Europe, the USA, Southeast Asia, and the Middle East.
LUKWOM supplies a wide range of insulated copper pipes for various air conditioning systems. Our products meet global standards and have received positive market feedback for their quality and performance.
We have established a strong, reliable supply chain. This ensures timely delivery of raw materials and finished products, minimizing delays and meeting customer demands effectively.

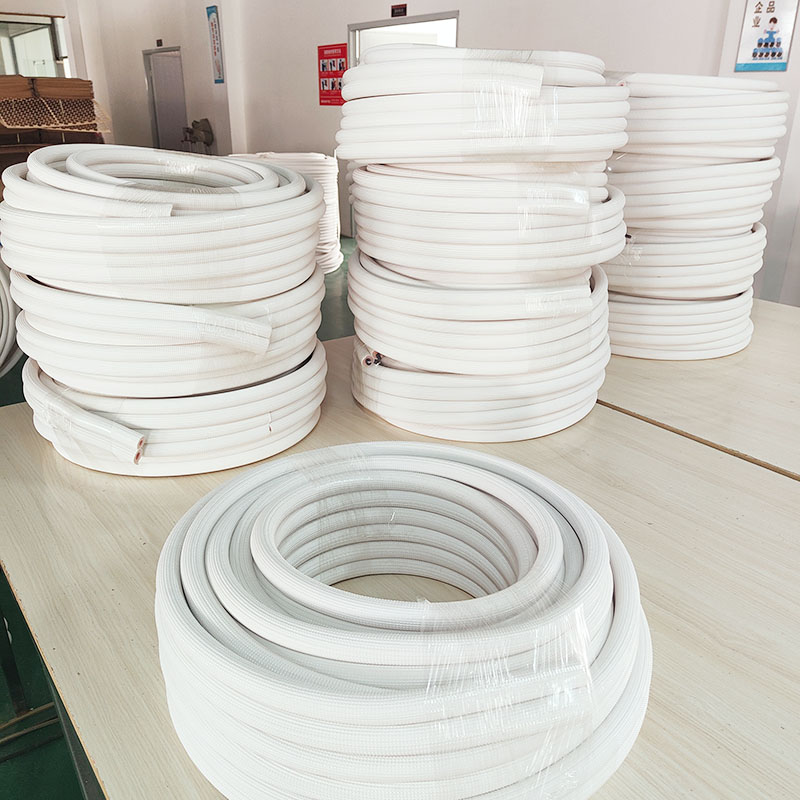

Our state-of-the-art production facilities and advanced technologies allow us to maintain high-quality output. We use precise processes to manufacture durable and efficient products.
We focus on continuous improvement and innovation. Our research and development team is dedicated to advancing our products and adapting to the latest industry trends.
LUKWOM is committed to providing ongoing support for our clients. We offer reliable after-sales service, technical assistance, and tailored solutions to meet specific customer needs.
We export our products worldwide, with a strong presence in key markets. Our insulated copper pipes are trusted by leading air conditioning manufacturers across multiple regions.
By choosing LUKWOM HVAC, you invest in quality, reliability, and a partner dedicated to your success.
A1: Our insulated copper pipes are made from high-quality full copper tubes and PE or rubber insulation.
A2: We offer lengths of 15m, 20m, 30m, and custom lengths based on your needs.
A3: Our insulated copper pipes are ideal for split air conditioning units, central AC systems, and refrigeration equipment.
A4: Yes, we offer custom insulation options with various thicknesses and colors, including white, black, green, blue, and red.
A5: Yes, our copper pipes meet ASTM B280, EN 12735-2, AS/NZS 1571, and JIS H3300 standards.
A6: Pre-insulated copper pipes help reduce material waste, save on labor costs, and ensure efficient installation for air conditioning systems.
