Lukwom HVAC is a leading supplier of insulated copper pipes for AC installation. We offer a wide range of sizes and insulation types, including 3-layer PE insulation for optimal performance. Our products meet the highest standards and can be customized to your specific requirements. Whether you need 3m, 4m, or 5m lengths, we can provide the ideal solution for your air conditioning needs.

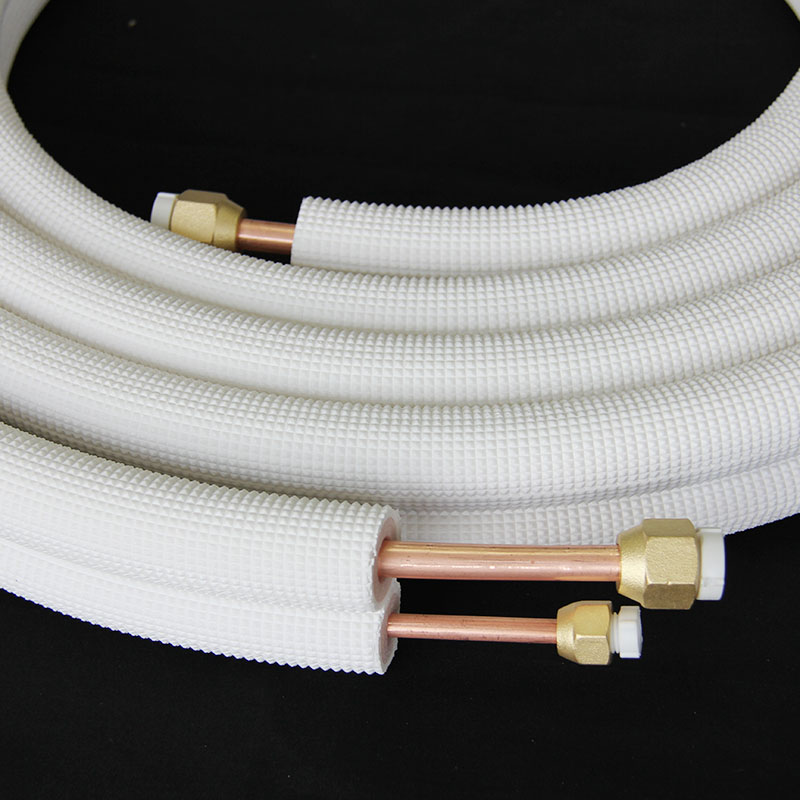

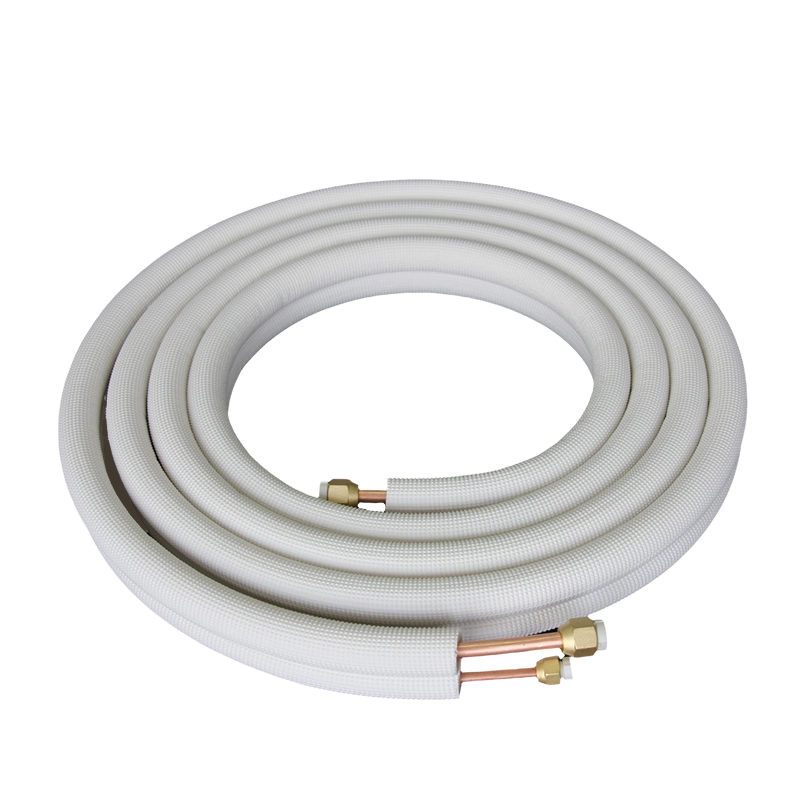

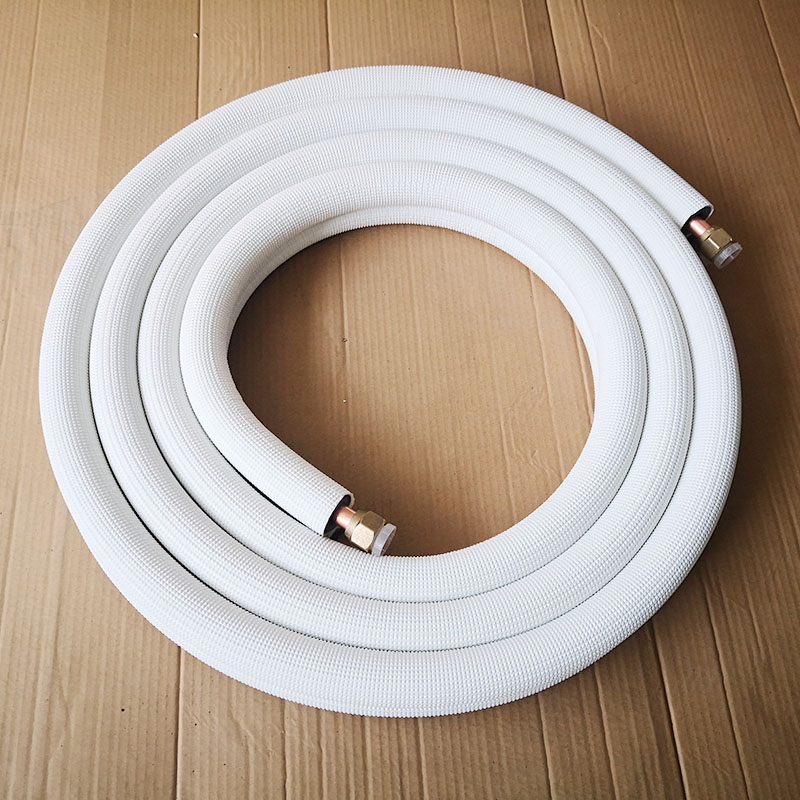

The Custom Wholesale Insulated Copper Pipe is designed for reliable AC installations. It connects indoor and outdoor units for efficient heat exchange. The pipe is made with high-quality pure copper and durable 3-layer PE insulation.
Our pipes follow global standards like ASTM B280 and EN 12735-2. Choose from lengths of 3m, 4m, 5m, up to 30m. We offer optional accessories like wrap tape and tube clamps. You can select insulation colors including white, black, and red.
These pipes are perfect for air conditioners and refrigerators, ensuring high performance and longevity.
| Parameter | Value |
|---|---|
| Brand Name | Lukwom HVAC |
| Composition | Cu ≥99.96%, P: 0.015-0.040% |
| Temper | Soft Annealed |
| Standard | ASTM B280, EN 12735-2, AS/NZS 1571, JIS H3300 |
| Insulation Type | PE 3-layer Insulation (Embossed Surface) |
| Normal Wall Thickness | 8mm, 10mm, 13mm, 15mm, 20mm |
| Insulation Colors | White, Black, Green, Blue, Red |
| Copper Tube Thickness | 0.4-1.2mm |
| Insulation Thickness | 6-20mm |
| Length Options | 3m, 4m, 5m, up to 30m |
| Accessories | Wrap Tape, Adhesive Tape, Wall Bushing, Tube Clamp, Screws, Putty, Drainage Tube, Electric Wires |
| Application | Air Conditioners, Refrigerators |
| Alloy Status | Pure Copper (Non-Alloy) |
| Tensile Strength | 215-275 MPa |
| Elongation | ≥25% |
Insulated Twin Copper Tube for A/C (with 3 Layer PE Insulation):
AC Model | Cu tube Size | Cu tube OD. mm | Cu tube WT. mm | Insulation tube ID. mm | Insulation tube WT. mm | Length m |
1 HP | 1/4" | 6.35 | 0.76 | 8.0 | 8 | 3/4/5/7/10m |
3/8" | 9.52 | 0.81 | 12.0 | 8 | ||
1.5 HP | 1/4" | 6.35 | 0.76 | 8.0 | 8 | |
1/2" | 12.70 | 0.81 | 15.0 | 10 | ||
2.5 HP | 1/4" | 6.35 | 0.76 | 8.0 | 8 | |
5/8" | 15.88 | 0.89 | 18.0 | 10 | ||
3 HP | 3/8" | 9.52 | 0.81 | 12.0 | 8 | |
5/8” | 15.88 | 0.89 | 18.0 | 10 | ||
4 HP | 3/8" | 9.52 | 0.81 | 12.0 | 8 | |
3/4" | 19.05 | 0.89 | 22.0 | 10 | ||
5 HP | 1/2" | 12.70 | 0.81 | 15.0 | 8 | |
3/4" | 19.05 | 0.89 | 22.0 | 10 |
Seamless Welding Joints
Welding points are free from pores, cracks, slag, burrs, and burns.
Oxidation-Free Surface
The pipe surface has no visible oxidation layer, ensuring high performance.
Durable and Secure Connections
The seal around the joint is fully melted, tightly covering the copper-aluminum interface.
Effective Draw Strength
The drawn section appears on the aluminum side, ensuring strong adhesion above the weld.
Superior Shrinkage and Sealing
Good shrinkage capability. The joint is sealed and cannot rotate, guaranteeing leak-free operation.
Pancake Coil for AC and Refrigeration
Used in air conditioning and refrigeration systems for heat exchange.
LWC Coil for AC and Refrigeration
Applied in cooling and heating systems for efficient performance.
Straight Copper Pipe for AC and Refrigeration
Used for direct piping in air conditioning and refrigeration systems.
Internal Groove Copper Pipe for AC and Refrigeration
Ideal for heat transfer in refrigeration and air conditioning setups.
Copper Pipe for Water, Gas, and Oil Transport
Suitable for the transportation of water, gas, and oil in various systems.
PE Coated Copper Pipe for Water/Gas/Oil Systems
Used in water, gas, and oil transfer systems with enhanced durability.
Semi-Finished Copper Pipe for Industrial Applications
Applied in industrial systems for various pipe work needs.
1. What is the material used for the insulated copper pipe?
The pipe is made of high-quality seamless copper with PE 3-layer embossed insulation for superior durability and performance.
2. Can I customize the length of the insulated copper pipe?
Yes, we can customize the length according to your requirements. Available lengths include 3m, 4m, 5m, and up to 30 meters.
3. What insulation options are available for the copper pipe?
We offer PE 3-layer insulation with various thickness options, including 8mm, 10mm, 13mm, 15mm, and 20mm. High-temperature resistant and flame-retardant insulation tubes are also available.
4. Is the copper pipe suitable for air conditioning systems?
Yes, this insulated copper pipe is designed specifically for use in air conditioning systems, connecting the outdoor and indoor units for cold and heat exchange.
