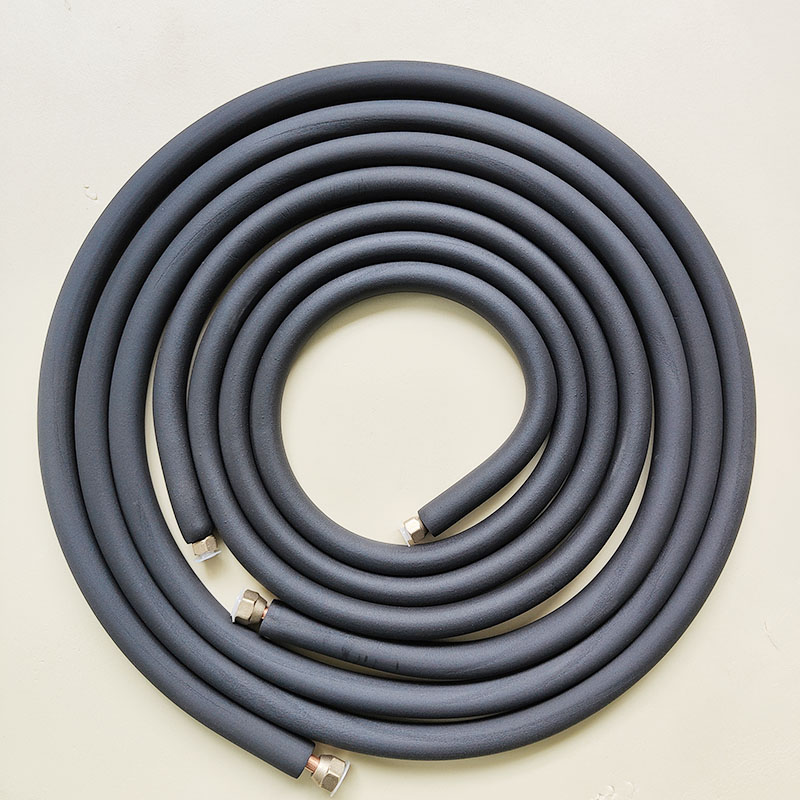

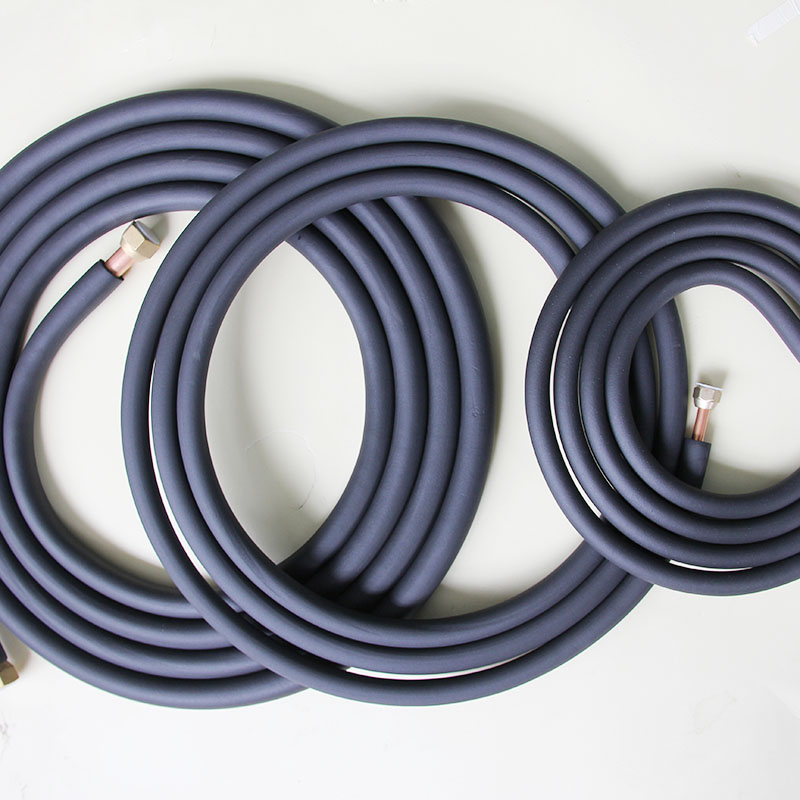

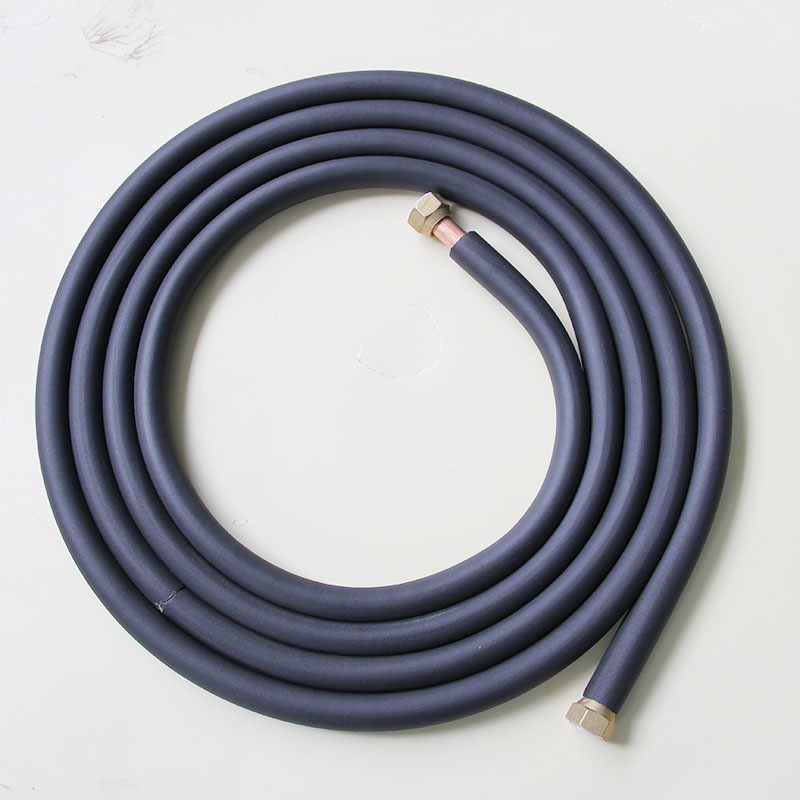

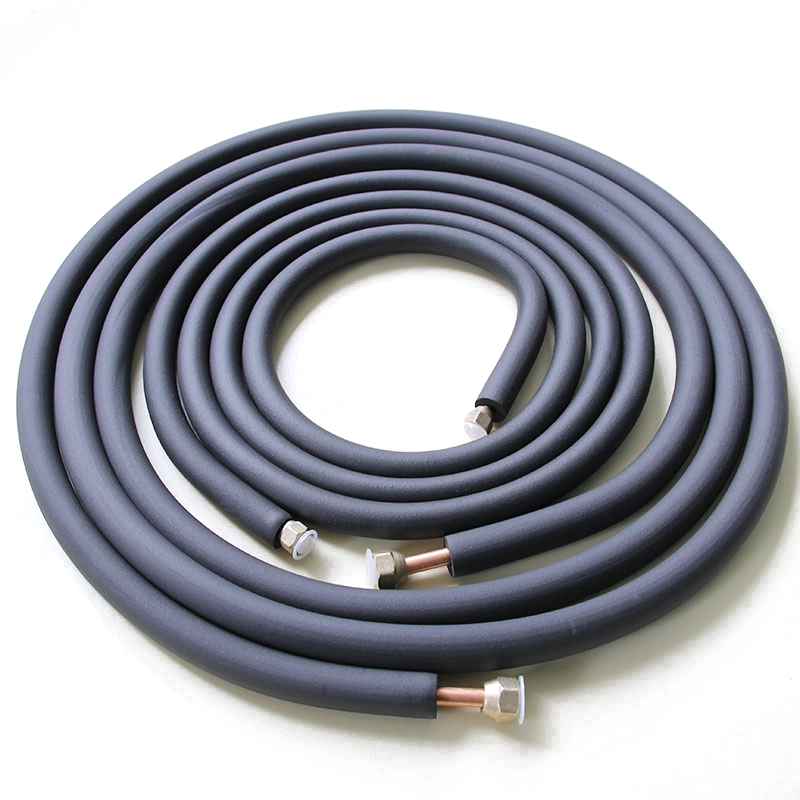

The insulated copper pipe is used to connect the outdoor and indoor units of the air conditioner for cold and heat exchange. It is made of high-quality seamless copper pipe, insulation pipe, and brass nut. The length and wall thickness can be produced according to customer’s requirements.
We can produce the pipe with rubber insulation tube, PE single layer insulation or PE 3-layer embossed insulation tube with different colors and wall thickness. Insulation tubes can be made of high-temperature and flame-retardant materials.
Copper Pipe Specifications:
Composition: Cu ≥99.96%, P: 0.015-0.040%
Temper: Soft Annealed
Standard: ASTM B280, EN 12735-2, AS/NZS 1571, JIS H3300
With Rubber insulation tube：
1, Insulation Normal Wall Thickness: 8mm, 10mm, 13mm, 15mm, 20mm.
2, Insulation Color: Black, Green, Blue, Red..
3, High temperature resistant or flame-retardant insulation tubes are optional
Insulated Twin Copper Pipe for A/C (with Rubber Insulation):
AC Model | Cu tube Size | Cu tube OD. Mm | Cu tube WT. mm | Insulation tube ID. mm | Insulation tube WT. mm | Length m |
1 HP | 1/4" | 6.35 | 0.76 | 8.0 | 8 | 3/4/5/7/10m |
3/8" | 9.52 | 0.81 | 12.0 | 8 | ||
1.5 HP | 1/4" | 6.35 | 0.76 | 8.0 | 8 | |
1/2" | 12.70 | 0.81 | 15.0 | 10 | ||
2.5 HP | 1/4" | 6.35 | 0.76 | 8.0 | 8 | |
5/8" | 15.88 | 0.89 | 18.0 | 10 | ||
3 HP | 3/8" | 9.52 | 0.81 | 12.0 | 8 | |
5/8” | 15.88 | 0.89 | 18.0 | 10 | ||
4 HP | 3/8" | 9.52 | 0.81 | 12.0 | 8 | |
3/4" | 19.05 | 0.89 | 22.0 | 10 | ||
5 HP | 1/2" | 12.70 | 0.81 | 15.0 | 8 | |
3/4" | 19.05 | 0.89 | 22.0 | 10 |
Copper tube Thickness: 0.4-1.2mm
Rubber Insulation, PE Foam Insulation available.
Insulation Thickness: 6-20mm
Length：3M, 4M, 5M, …, 30 Meters
Accessories for option: Wrap Tape, Adhesive Tape, Wall Bushing, Tube Clamp, Screws, Putty, Drainage Tube & Electric wires.
