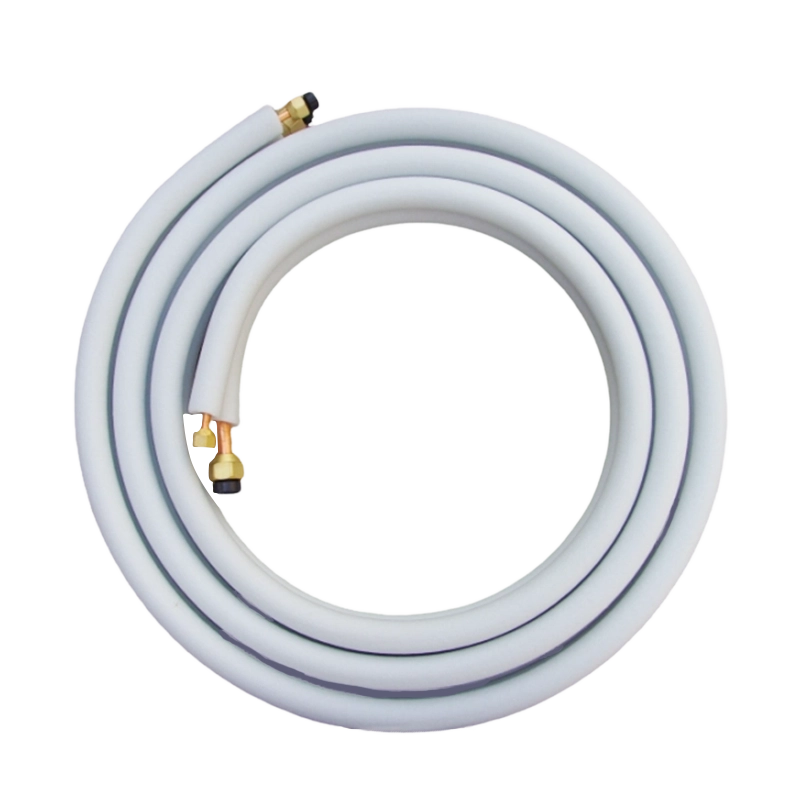

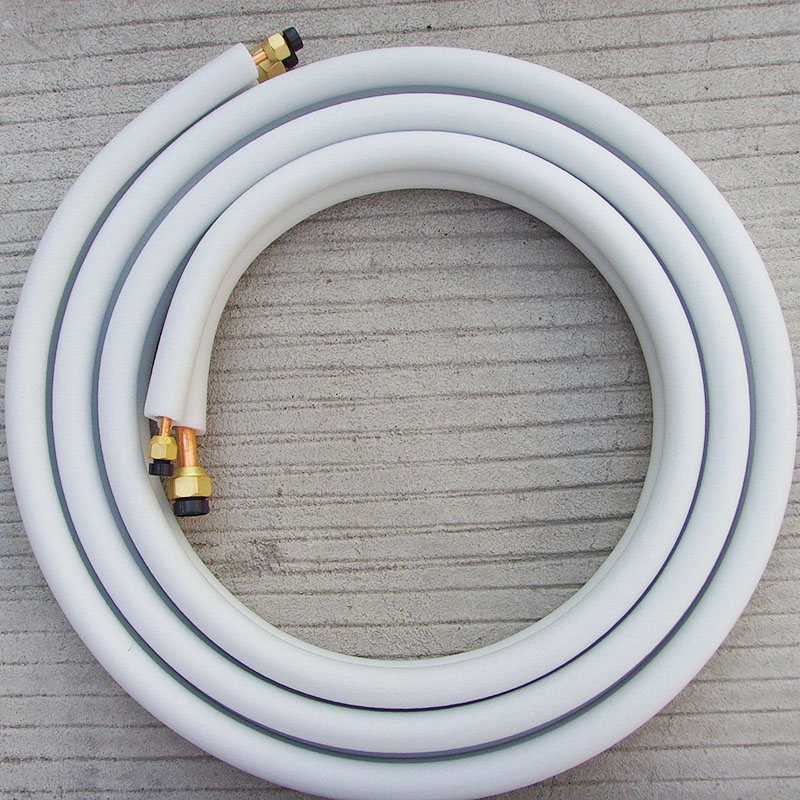

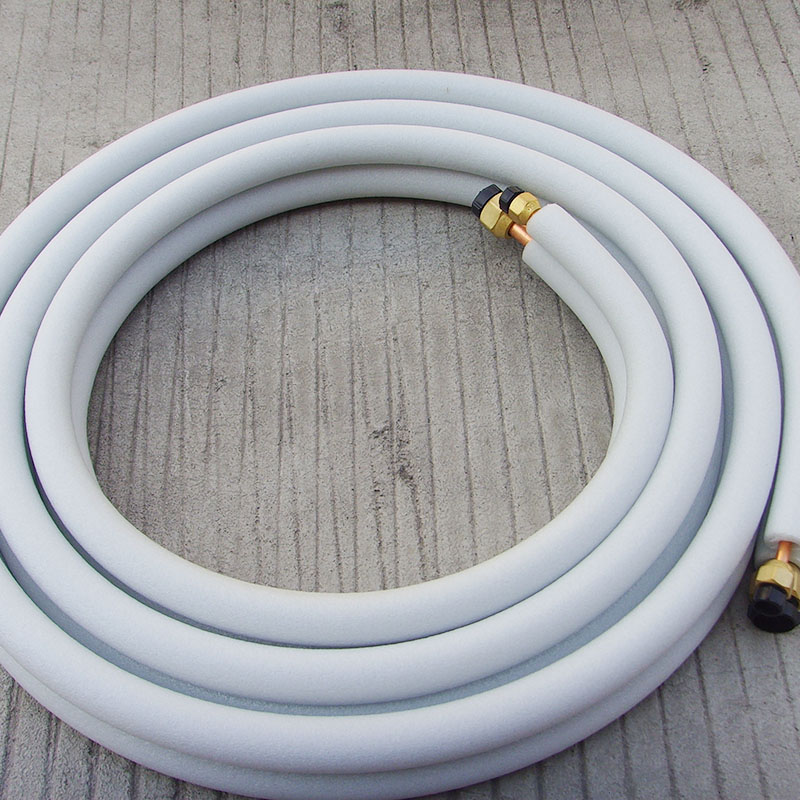

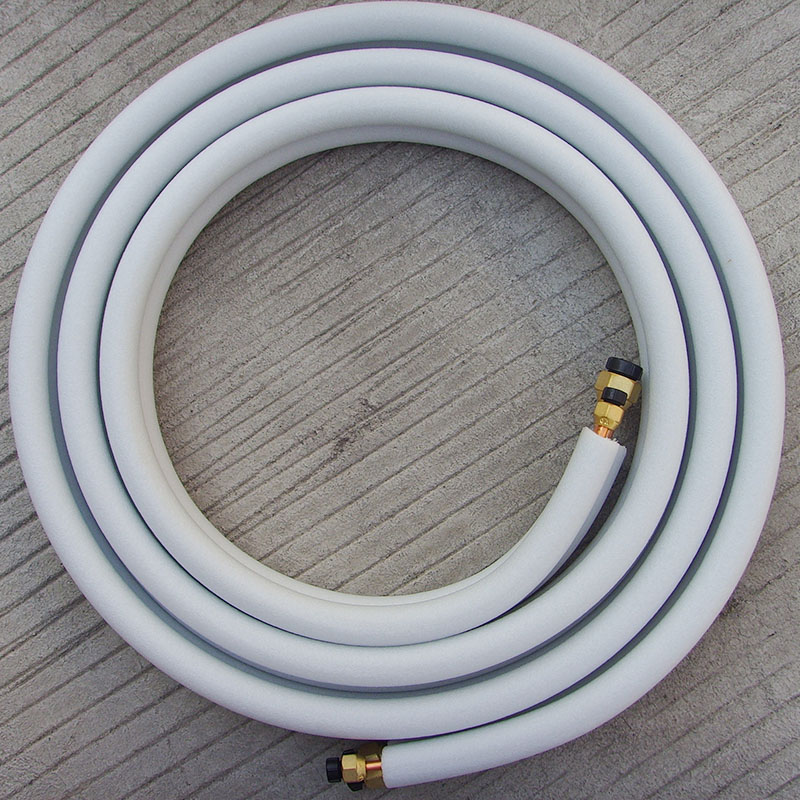

The High Quality Insulated Copper Pipe for Air Conditioning AC Installation is designed for efficient heat exchange. It connects indoor and outdoor units of air conditioners. Made from premium seamless copper, it ensures durability and performance.
The insulated copper pipe is used to connect the outdoor and indoor units of the air conditioner for cold and heat exchange. It is made of high-quality seamless copper pipe, insulation pipe, and brass nut. The length and wall thickness can be produced according to customer's requirements.
The copper composition is Cu ≥99.96% with P content of 0.015-0.040%, meeting standards like ASTM B280, EN 12735-2, AS/NZS 1571, and JIS H3300. The pipe is soft annealed for easy installation and flexibility.
The insulation uses EPE single layer, available in 8mm, 10mm, 13mm, 15mm, and 20mm thicknesses. Colors include grey, white, black, blue, and red. High-temperature resistant or flame-retardant options are also provided for added safety.
Copper tube thickness ranges from 0.4mm to 1.2mm. Insulation options include PE foam and rubber insulation, with thicknesses from 6mm to 20mm. Lengths vary from 3m, 4m, and 5m, up to 30m, catering to different installation needs.
Accessories available include wrap tape, adhesive tape, wall bushings, clamps, screws, putty, drainage tubes, and electric wires. The product supports various processing services like bending, uncoiling, welding, punching, and cutting.
This pipe is ideal for air conditioning systems, ensuring reliable performance in both residential and commercial applications.
We can produce the pipe with rubber insulation tube, PE single layer insulation or PE 3-layer embossed insulation tube with different colors and wall thickness. Insulation tubes can be made of high-temperature and flame-retardant materials.
| Parameter | Value |
|---|---|
| Brand Name | Lukwom HVAC |
| Alloy | Yes (Cu ≥99.96%, P: 0.015-0.040%) |
| Temper | Soft Annealed |
| Standard | ASTM B280, EN 12735-2, AS/NZS 1571, JIS H3300 |
| Insulation Type | EPE Single Layer |
| Insulation Wall Thickness | 8mm, 10mm, 13mm, 15mm, 20mm |
| Insulation Color | Grey, White, Black, Blue, Red |
| Special Features | High Temperature Resistant, Flame-Retardant Insulation Optional |
| Copper Tube Thickness | 0.4mm - 1.2mm |
| Available Insulation Types | Rubber Insulation, PE Foam Insulation |
| Insulation Thickness | 6mm - 20mm |
| Length Options | 3m, 4m, 5m, up to 30m |
| Accessories | Wrap Tape, Adhesive Tape, Wall Bushing, Tube Clamp, Screws, Putty, Drainage Tube, Electric Wires |
| Application | Air Conditioner |
| Processing Services | Bending, Uncoiling, Welding, Punching, Cutting |
Insulated Twin Copper Tube for A/C (with single Layer PE Insulation)
AC Model | Cu tube Size | Cu tube OD. mm | Cu tube WT. mm | Insulation tube ID. mm | Insulation tube WT. mm | Length m |
1 HP | 1/4" | ∅6.35 | 0.76 | ∅8.0 | 8 | 3、4、5、7、10m |
3/8" | ∅9.52 | 0.81 | ∅12.0 | 8 | 3、4、5、7、10m | |
1.5 HP | 1/4" | ∅6.35 | 0.76 | ∅8.0 | 8 | 3、4、5、7、10m |
1/2" | ∅12.70 | 0.81 | ∅15.0 | 10 | 3、4、5、7、10m | |
2.5 HP | 1/4" | ∅6.35 | 0.76 | ∅8.0 | 8 | 3、4、5、7、10m |
5/8" | ∅15.88 | 0.89 | ∅18.0 | 10 | 3、4、5、7、10m | |
3 HP | 3/8" | ∅9.52 | 0.81 | ∅12.0 | 8 | 3、4、5、7、10m |
5/8” | ∅15.88 | 0.89 | ∅18.0 | 10 | 3、4、5、7、10m | |
4 HP | 3/8" | ∅9.52 | 0.81 | ∅12.0 | 8 | 3、4、5、7、10m |
3/4" | ∅19.05 | 0.89 | ∅22.0 | 10 | 3、4、5、7、10m | |
5 HP | 1/2" | ∅12.70 | 0.81 | ∅15.0 | 8 | 3、4、5、7、10m |
3/4" | ∅19.05 | 0.89 | ∅22.0 | 10 | 3、4、5、7、10m |
Pure Copper: Ensures high quality and optimal heat conductivity for reliable air conditioning performance.
No Refrigerant Leakage: The pipe is designed to prevent any refrigerant leakage, ensuring system efficiency.
Thickened Anti-Crack Nuts: Equipped with durable nuts that resist cracking, enhancing the pipe's longevity.
Precision Flared Ends: The ends are finely flared without burrs, making installation easier and safer.
Reduced Installation Steps: Designed to minimize installation procedures, ensuring faster setup and longer service life.
High-Quality Insulation: Constructed with embossed polyethylene film and dual-layer insulation cotton for superior performance.
Weatherproof and Flame-Resistant: Offers protection from wind, UV rays, and fire, ensuring safety in various conditions.
Eco-Friendly: Made from recyclable materials, free from harmful substances, promoting sustainability.
Laser Marked Sizes: The pipe is marked with size specifications for easy measurement and customized cutting.
Durable and Long-Lasting: Built to withstand tough conditions, ensuring reliable performance for many years.
Efficient Heat Exchange: The high-quality copper material ensures fast and efficient heat transfer for optimal air conditioning performance.
Easy Installation: With precision flared ends and proper insulation, the pipe is easy to install, reducing time and labor costs.
Wide Application: Ideal for use in air conditioning systems, both for residential and commercial installations.
Cost-Effective: Provides high performance while being affordable, reducing maintenance and replacement costs.
Safe and Reliable: The anti-crack nuts and flame-resistant insulation enhance safety during use.
Customizable Length: Available in various lengths, allowing customization to meet specific project needs.
Environmentally Friendly: Made from recyclable materials, promoting sustainability in air conditioning systems.
1. What is the main use of Lukwom HVAC's insulated copper pipe?
Lukwom HVAC's insulated copper pipe is designed to connect the indoor and outdoor units of air conditioning systems. It ensures efficient cold and heat exchange for optimal performance in HVAC installations.
2. What insulation options are available for your copper pipes?
Our insulated copper pipes come with various insulation options, including EPE single-layer insulation, rubber insulation, and PE foam insulation. These options provide excellent thermal resistance and flame-retardant properties.
3. Can the copper pipes be customized in length and insulation thickness?
Yes, we offer copper pipes in various lengths (3m, 4m, 5m, up to 30m) and insulation thicknesses ranging from 6mm to 20mm. Custom lengths and wall thicknesses can be produced according to customer requirements.
4. Are the copper pipes resistant to high temperatures?
Yes, the insulated copper pipes are equipped with high-temperature resistant and flame-retardant insulation options, ensuring reliable performance even in harsh environments.
5. What are the material specifications for your copper pipes?
Our copper pipes are made from high-quality copper (Cu ≥ 99.96%) with soft annealed temper. They conform to ASTM B280, EN 12735-2, AS/NZS 1571, and JIS H3300 standards.
