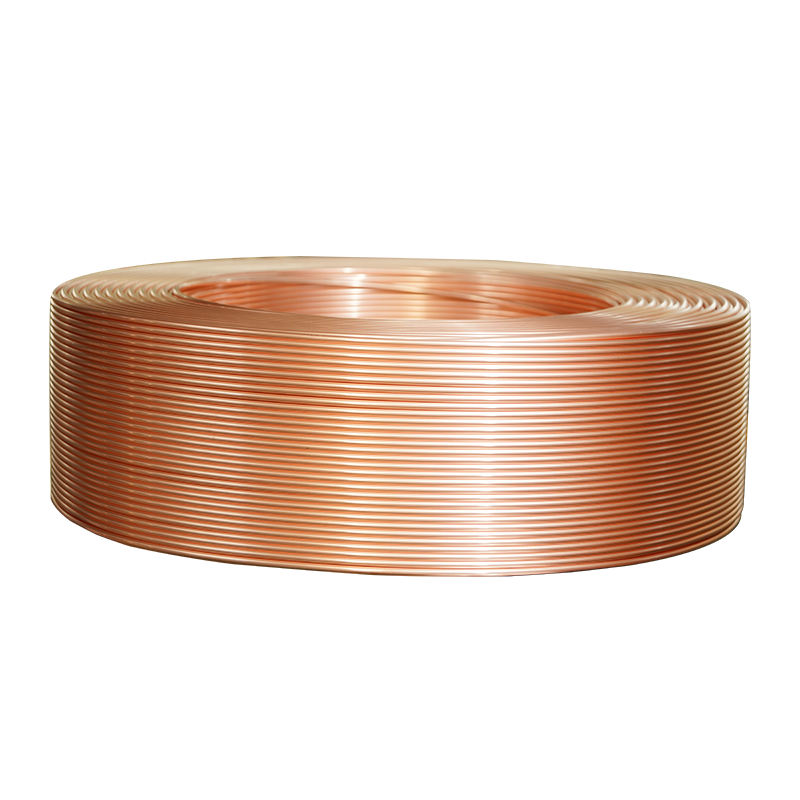

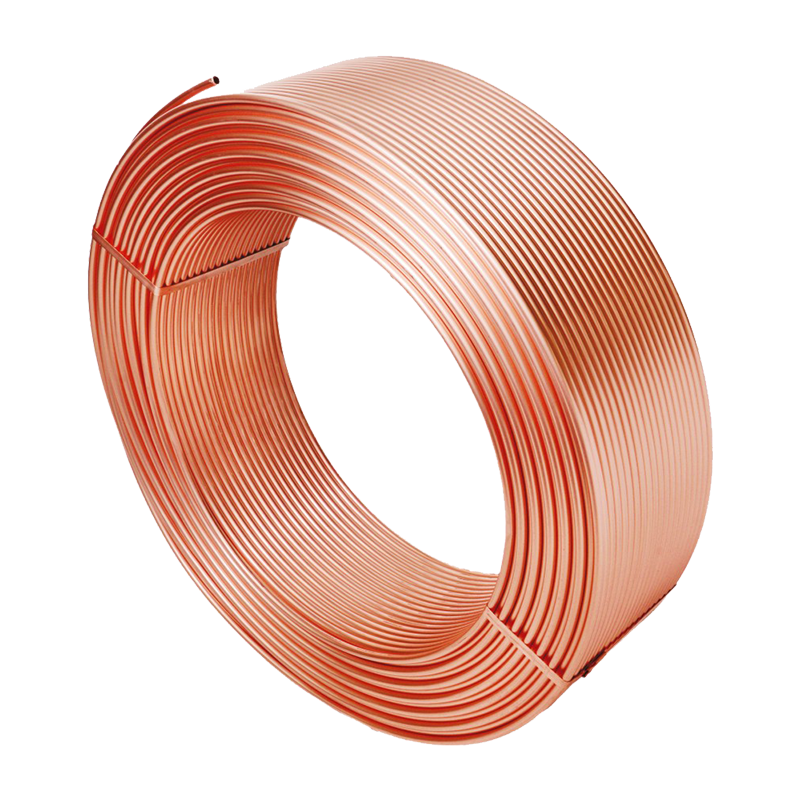

Level Wound Coil – Plain:
The plain LWC copper coil is a continuous length copper tube wound around it, which is commonly used in the heat exchange industry, such as air conditioning, refrigeration, and liquid cooling equipment.
Application: air conditioner and refrigeration system, heat exchange industry
Composition: Cu ≥99.96%, P: 0.015-0.040%
Temper: Soft Annealed

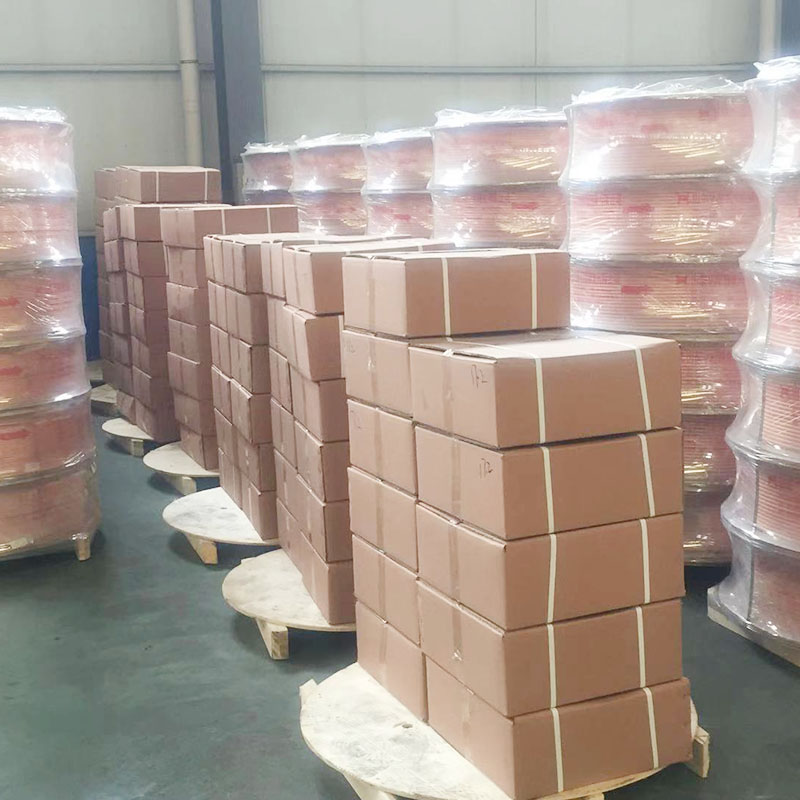

Packing: Wooden pallets
Standard: ASTM B280, EN 12735-2, AS/NZS 1571, JIS H3300
Copper Pipe OD. | Wall Thickness | Coil Weight | |||
inch | mm | inch | mm | Kg | Lb |
5/32" | 3.8 | 0.011"-0.024" | 0.28-0.60 | 90-130 Kg | 200-300 Lb |
3/16" | 4.76 | 0.011"-0.032" | 0.28-0.81 | ||
1/4" | 6.35 | 0.011"-0.042" | 0.28-1.07 | ||
5/16" | 7.94 | 0.011"-0.059" | 0.28-1.50 | ||
3/8" | 9.52 | 0.011"-0.059" | 0.28-1.50 | ||
1/2" | 12.7 | 0.014"-0.079" | 0.35-2.00 | ||
5/8" | 15.88 | 0.018"-0.079" | 0.46-2.00 | ||
3/4" | 19.05 | 0.028"-0.079" | 0.71-2.00 | ||
7/8" | 22.22 | 0.035"-0.079" | 0.89-2.00 | ||
