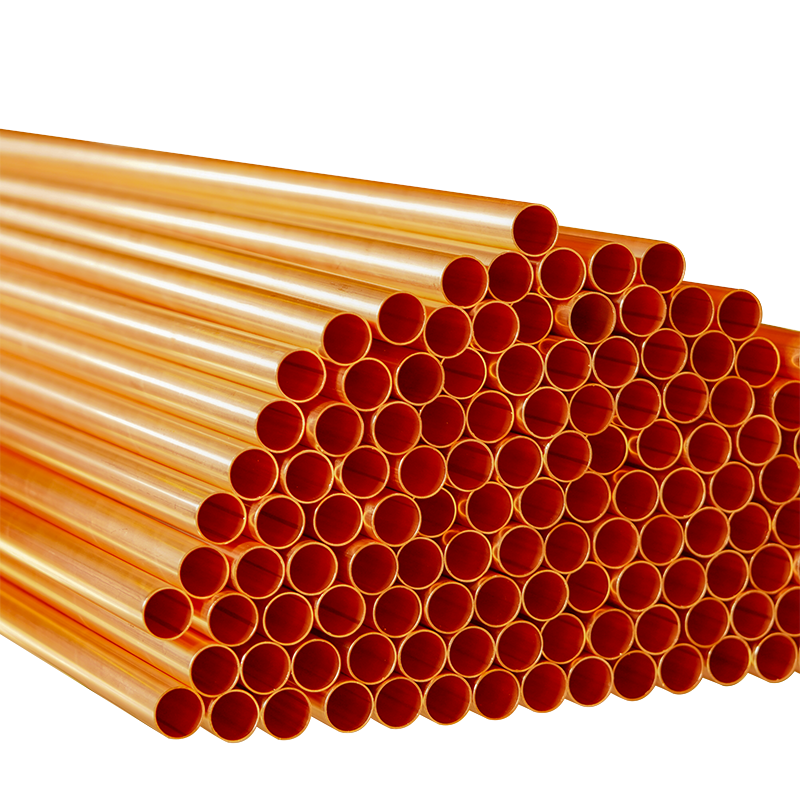

Application: connection for piping system, Air conditioning and refrigeration, heating,
water pipe and gas pipe
Composition: C12200, Cu ≥99.96%, P: 0.015-0.040%
Temper: Hard
Packing: Capped / Plugged
Standard: ASTM B88, EN1057, ASTM B280, EN 12735-2
Copper Pipe OD. | Wall Thickness (mm) | Length | |||
inch | mm | K | L | M | Mtr / PC |
3/8" | 9.52 | 0.89 | 0.76 | Length 5.8 Mtrs/Pc for 20' Feet Container, | |
1/2" | 12.7 | 1.24 | 0.89 | 0.64 | |
5/8" | 15.88 | 1.24 | 1.03 | 0.71 | |
3/4" | 19.05 | 1.24 | 1.07 | ||
7/8" | 22.23 | 1.65 | 1.14 | 0.81 | |
1-1/8" | 28.58 | 1.65 | 1.27 | 0.89 | |
1-3/8" | 34.93 | 1.65 | 1.4 | 1.07 | |
1-5/8" | 41.28 | 1.83 | 1.52 | 1.24 | |
2-1/8" | 53.98 | 2.11 | 1.78 | 1.47 | |
2-5/8" | 66.68 | 2.41 | 2.03 | 1.65 | |
3-1/8" | 79.38 | 2.77 | 2.29 | 1.83 | |
