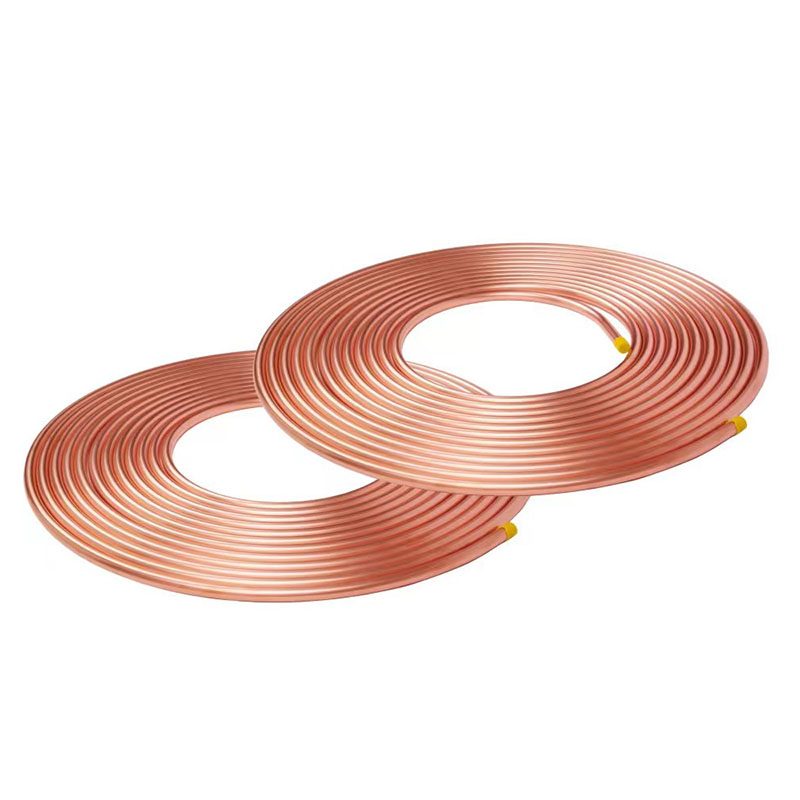

Pancake Coil Copper Tube
Application: air conditioning and refrigeration system
Composition: Cu ≥99.96%, P: 0.015-0.040%
Temper: Soft Annealed

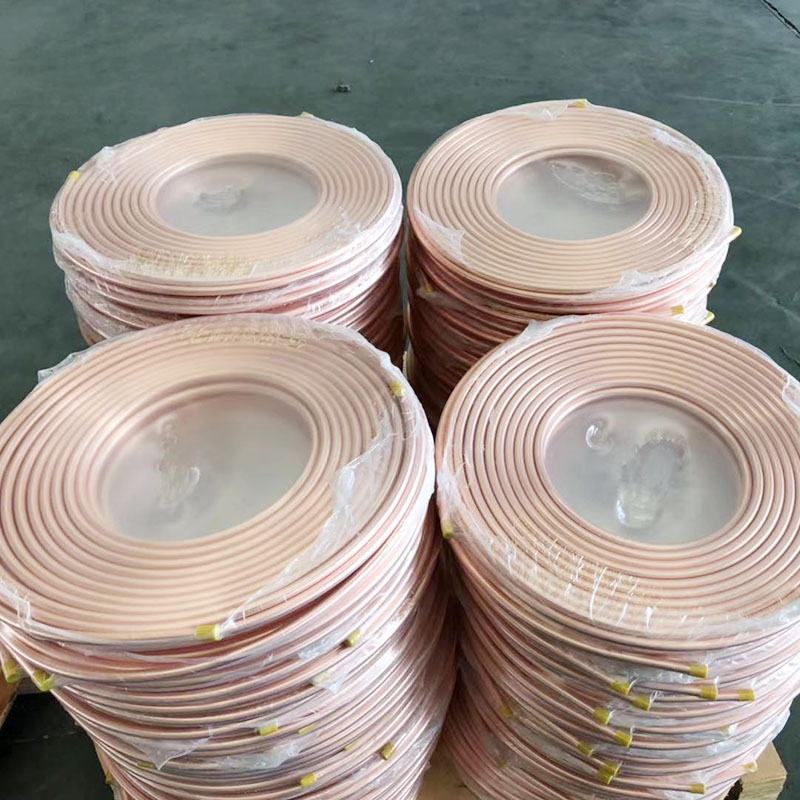

Packing: end with plastic cap, single layer or double layer packed in shrink package
Standard: ASTM B280, EN 12735-2, AS/NZS 1571, JIS H3300
Copper Pipe OD. | Wall Thickness 1 | Wall Thickness 2 | Length | WT Range | |||
inch | mm | inch | mm | inch | mm | feet / Mtr | inch / mm |
3/16" | 4.76 | 0.030 | 0.76 | 0.024 | 0.61 | ≤ 100 feet | 0.014" - 0.050" |
1/4" | 6.35 | 0.030 | 0.76 | 0.024 | 0.61 | ||
5/16" | 7.94 | 0.032 | 0.81 | 0.024 | 0.61 | ||
3/8" | 9.52 | 0.032 | 0.81 | 0.024 | 0.61 | ||
1/2" | 12.7 | 0.032 | 0.81 | 0.028 | 0.71 | ||
5/8" | 15.88 | 0.035 | 0.89 | 0.028 | 0.71 | ||
3/4" | 19.05 | 0.035 | 0.89 | 0.032 | 0.81 | ||
7/8" | 22.22 | 0.045 | 1.14 | 0.040 | 1.02 | ||
Pancake Coil Copper Tube
Application: air conditioning and refrigeration system
Composition: Cu ≥99.96%, P: 0.015-0.040%
Temper: Soft Annealed
Packing: end with plastic cap, single layer or double layer packed in shrink package
Standard: ASTM B280, EN 12735-2, AS/NZS 1571, JIS H3300
Copper Pipe OD. | Wall Thickness 1 | Wall Thickness 2 | Length | WT Range | |||
inch | mm | inch | mm | inch | mm | feet / Mtr | inch / mm |
3/16" | 4.76 | 0.030 | 0.76 | 0.024 | 0.61 | ≤ 100 feet | 0.014" - 0.050" |
1/4" | 6.35 | 0.030 | 0.76 | 0.024 | 0.61 | ||
5/16" | 7.94 | 0.032 | 0.81 | 0.024 | 0.61 | ||
3/8" | 9.52 | 0.032 | 0.81 | 0.024 | 0.61 | ||
1/2" | 12.7 | 0.032 | 0.81 | 0.028 | 0.71 | ||
5/8" | 15.88 | 0.035 | 0.89 | 0.028 | 0.71 | ||
3/4" | 19.05 | 0.035 | 0.89 | 0.032 | 0.81 | ||
7/8" | 22.22 | 0.045 | 1.14 | 0.040 | 1.02 | ||
