This product is a closed-cell elastic material, has perfect performances such as soft, anti-bending, cold-resistant, shake-resisting, fire-blocking, water- proof, low thermal conductivity and sound-absorption. It can be widely used for all kinds of cold or hot medium piping lines to reduce cold or thermal loss.
1, Rubber Foam Insulation Technical Index ( Class 1).
Item | Specification |
Surface Density | ≤95 Kg/m³ |
Burning Performance ( Class B1) | |
*Oxygen Index | ≥34% |
*SDR | ≤75 |
Thermal Conductivity | |
*Average Temperature | |
-20℃ | ≤0.030 W/(m.K) |
0℃ | ≤0.032 W/(m.K) |
25℃ | ≤0.034 W/(m.K) |
Water Vapor Permeability | |
*Coefficient | ≤2.6x10-11 g/(m.s.pa) |
*Factor | ≥1x104 |
Volumetric Water Absorption in Vacuum | ≤10% |
Dimension Stability | ≤10% |
Compression Resilience Ratio | ≥70% |
Compression Ration 50% | ≥70% |
Compression Time 72h | ≥70% |
Crack Resistance | ≥2.5 N/CM |
Temperature | -40℃ - 105℃ |
Aging Resistance 150h | Slightly crumping, no cracks, no pin holes, not deforming |
2, Normal Sizes of Rubber Foam Insulation Tube.

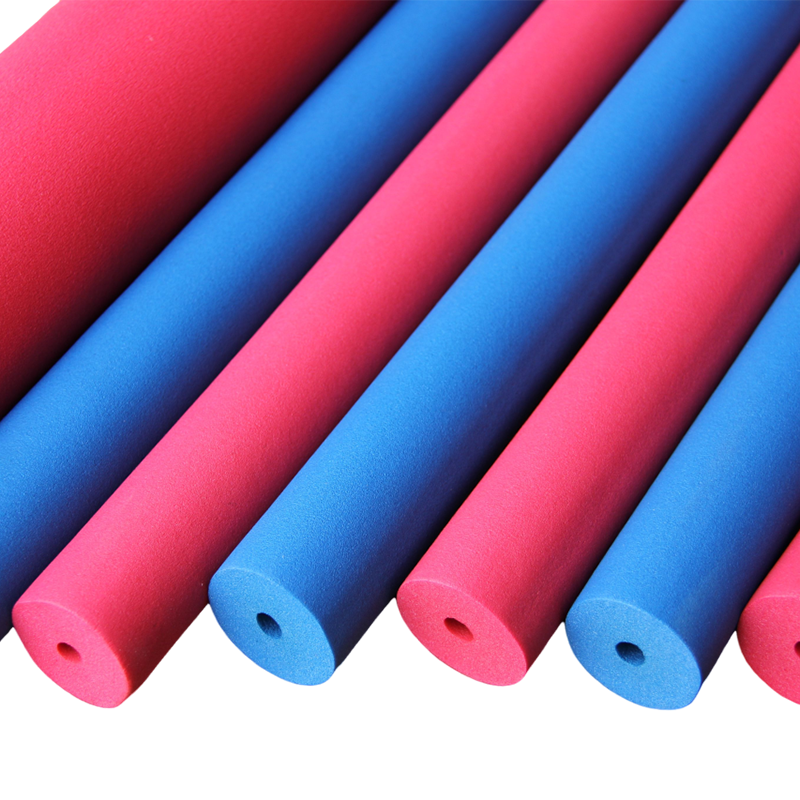

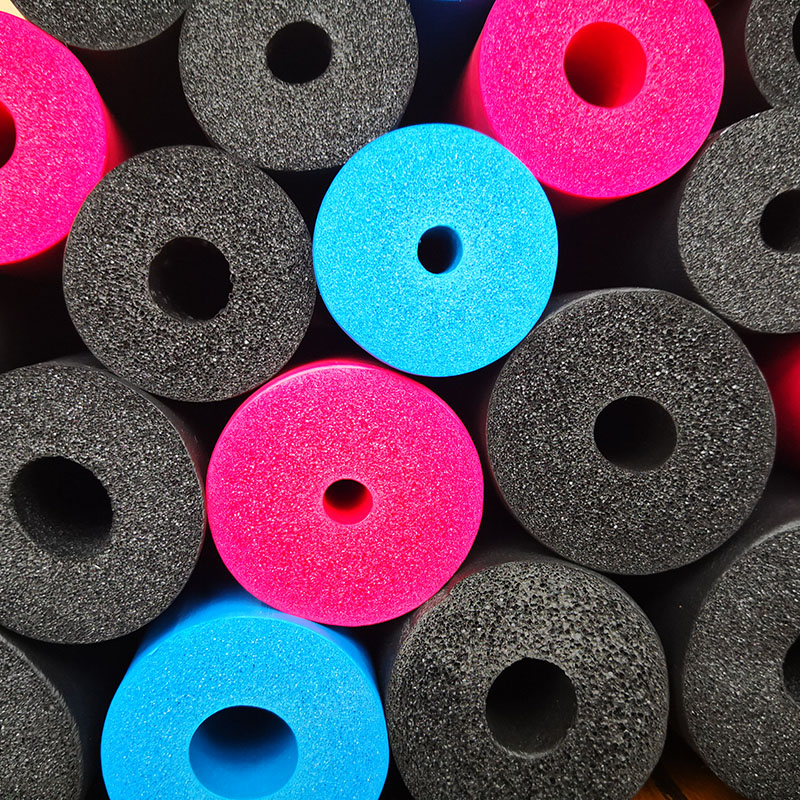

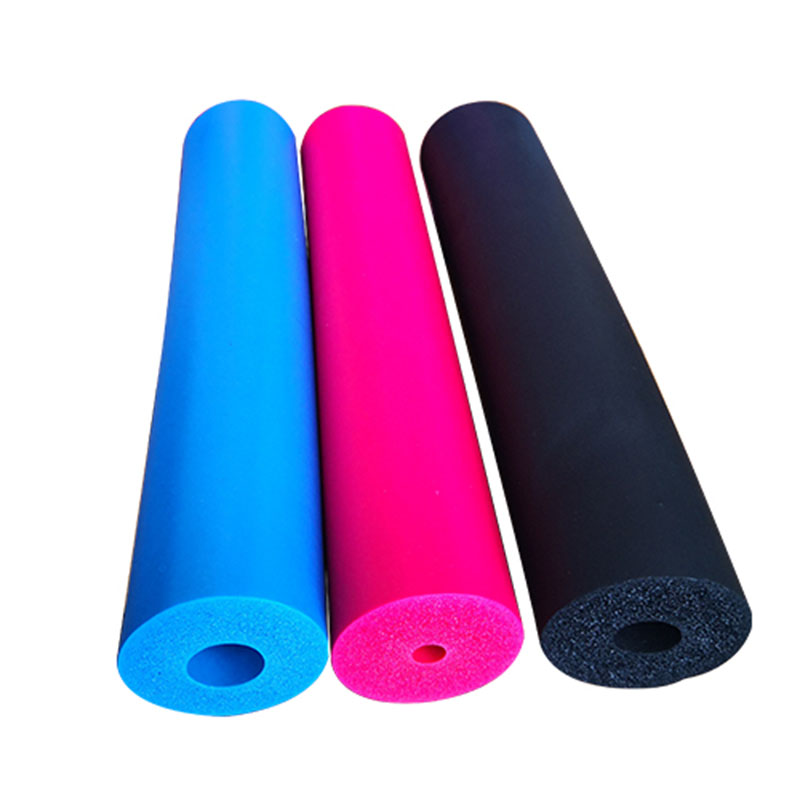

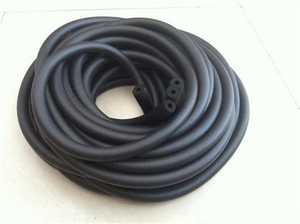

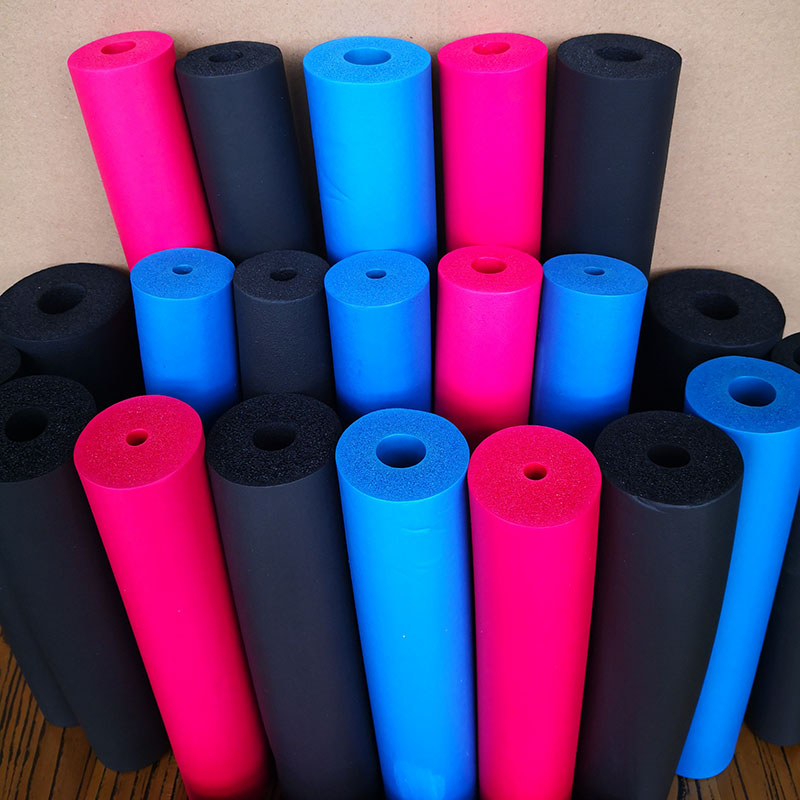

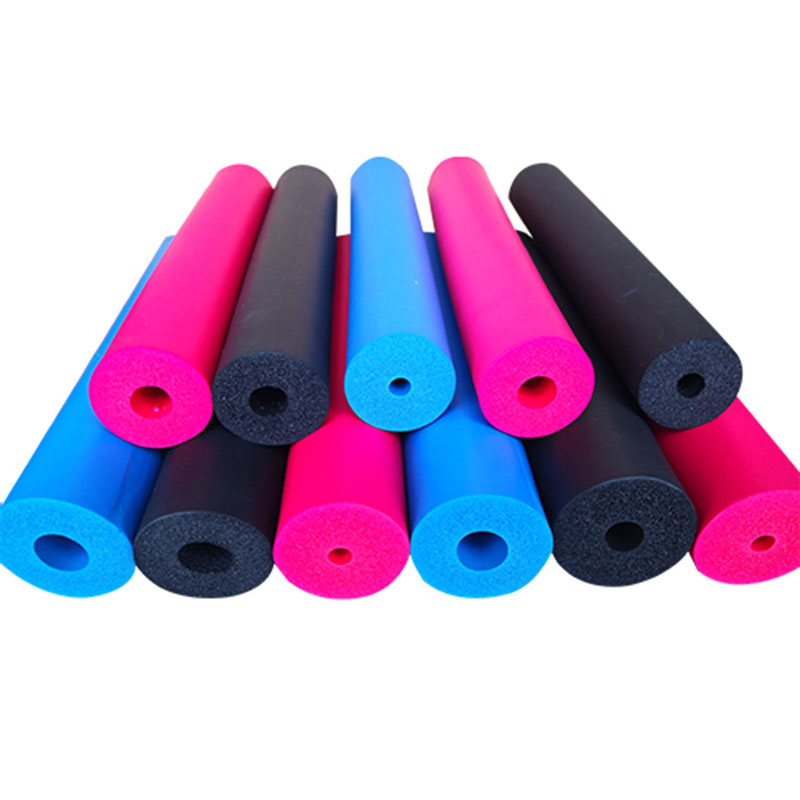

Rubber Insulation pipe is soft and anti-bending, widely used for many kinds of tube heat insulation such as air conditioners, automobile air conditioners, and solar energy water pipe and so on.
Copper Pipe Size | Copper Pipe OD. (mm) | Insulation Pipe ID. (mm) | Insulation Wall thickness mm | Length m |
1/4" | 6.35 | 6.5 | 6, 9, 10, 13, 15, 20, 25, 30mm. | 1.8m, 2.0m, 1-50m to request. |
3/8" | 9.52 | 10 | ||
1/2" | 12.7 | 13 | ||
5/8" | 15.88 | 16 | ||
3/4" | 19.05 | 19 | ||
7/8" | 22.23 | 22 | ||
1" | 25.4 | 25 | ||
1-1/8" | 28.58 | 28 | ||
1-1/4" | 31.75 | 32 | ||
1-3/8" | 34.93 | 35 | ||
1-1/2" | 38.1 | 38 | ||
1-5/8" | 41.3 | 42 | ||
1-7/8" | 47.63 | 48 | ||
2" | 50.8 | 51 |
3, Normal Sizes of Rubber Foam Insulation Sheet.
Wall thickness | 10, 13, 16, 19, 25, 30mm .. |
Width | 1m, 1.2m, 1.5m |
Length | 10-20m |
Wall thickness, Width and Length is available to Customer's request.
