Versatility: The comprehensive kit includes a wide selection of dies and adapters, making it suitable for various copper tubing sizes, from 1/4" to 7/8" OD. This flexibility ensures that the toolset can meet the demands of multiple flaring and swaging applications, from HVAC systems to plumbing and refrigeration.
Precision Engineering: Designed with accuracy in mind, each tool in the set delivers consistent, high-quality results. The flared and swaged connections are precisely formed to meet industry standards, ensuring reliable performance in critical applications.
Ease of Use: With ergonomic handles and intuitive operation, these kits are designed for quick, effortless flaring and swaging. Whether you’re a seasoned professional or a DIY enthusiast, the user-friendly features reduce the need for excessive force, streamlining the job.
Safety: Safety is paramount. The kit includes secure tube holding mechanisms that prevent the tubing from slipping or being damaged during the process. Additionally, visual indicators help you avoid over-flaring or damaging the material, ensuring every connection is made correctly.
Durability: Made from high-quality materials, these tools are engineered to endure the rigors of frequent professional use. The long-lasting construction means you can rely on them for years without compromising on performance.
Portability: The kit comes with a custom-molded carrying case, making it easy to transport and store the tools securely. Whether you're on a construction site or in the workshop, you’ll appreciate the convenience and organization this carrying case offers.

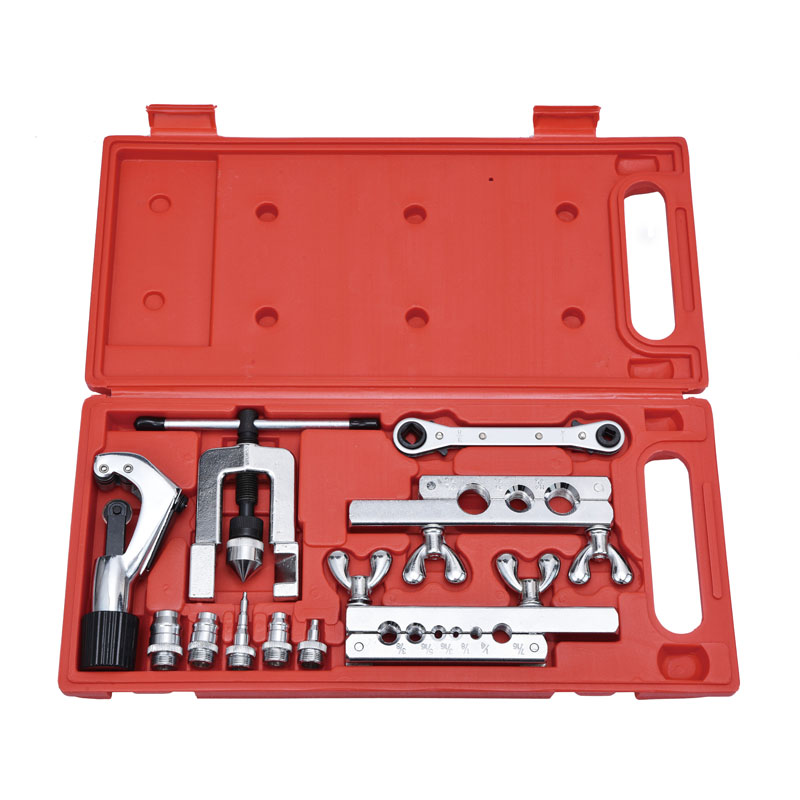

Components of a Typical Kit:
Hydraulic or Manual Flaring and Swaging Pump: Provides consistent pressure for precise tube forming.
Yoke Assembly: Holds the tube securely in place, ensuring accurate flaring or swaging.
Forming Dies: A range of dies to suit different tube sizes and provide clean, smooth flares.
Swaging Adapters: Adaptable for a variety of tube sizes, ensuring versatility across multiple projects.
Carrying Case: Custom-designed for easy portability and organized storage.
Additional Tools: Includes reamers and thread cleaners for an efficient workflow and smooth tube preparation.
Operational Process:
Cutting the Tube: Begin by cutting the copper tube to the required length using an appropriate tube cutter.
Securing the Tube: Insert the tube into the yoke assembly and secure it firmly for accurate alignment during the forming process.
Flaring or Swaging: Select the correct die or swaging adapter based on the tube size, and apply the necessary pressure using the hydraulic or manual pump to create a smooth, durable flare or swage.
Quality Check: After the forming process, visually inspect the tube ends to ensure they meet the required fitting specifications, guaranteeing a perfect, leak-proof connection.
With our advanced flaring and swaging kits, you’re equipped to handle a wide variety of professional tasks with precision and ease. For additional information or to place an order, please contact us today. We look forward to helping you find the perfect solution for your needs and providing you with high-quality tools that deliver long-term performance.
