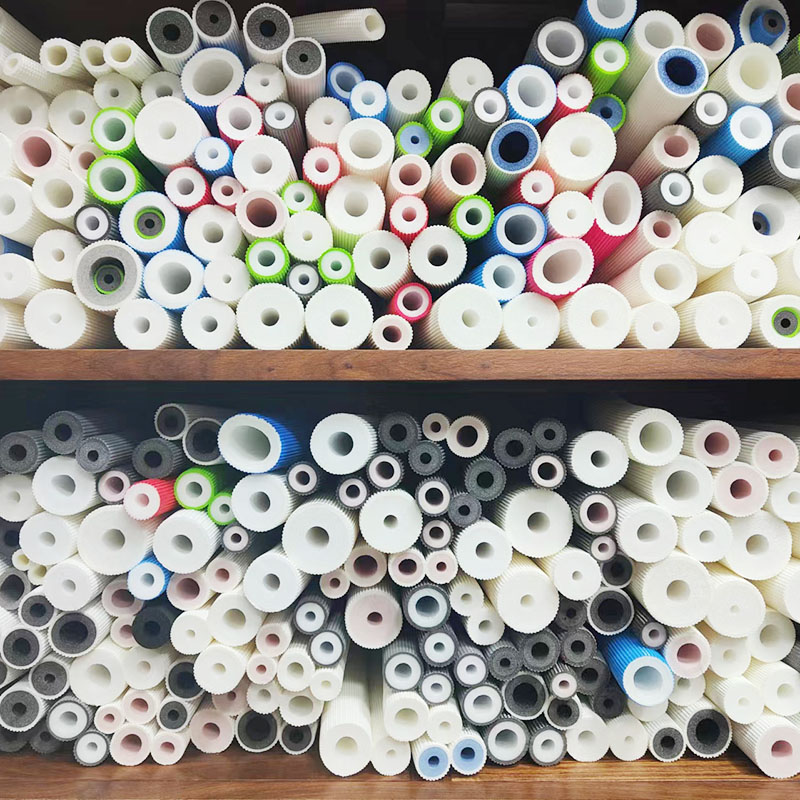

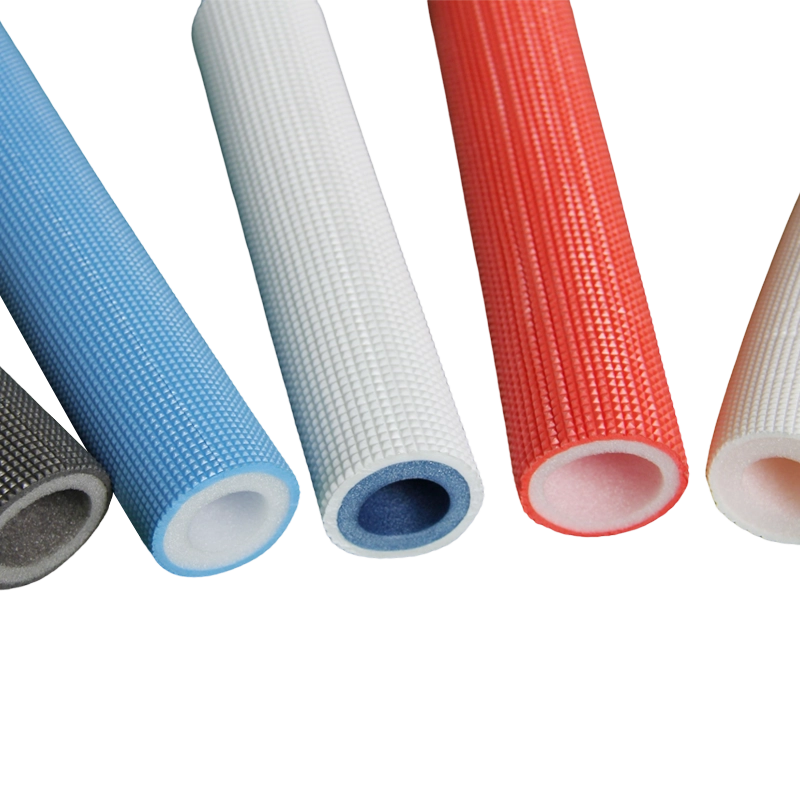

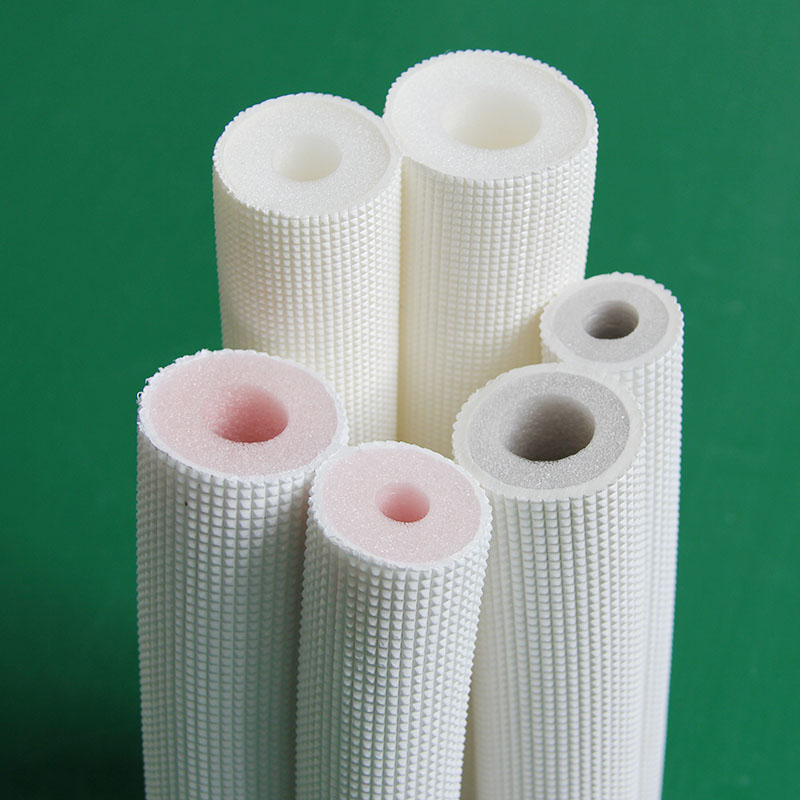

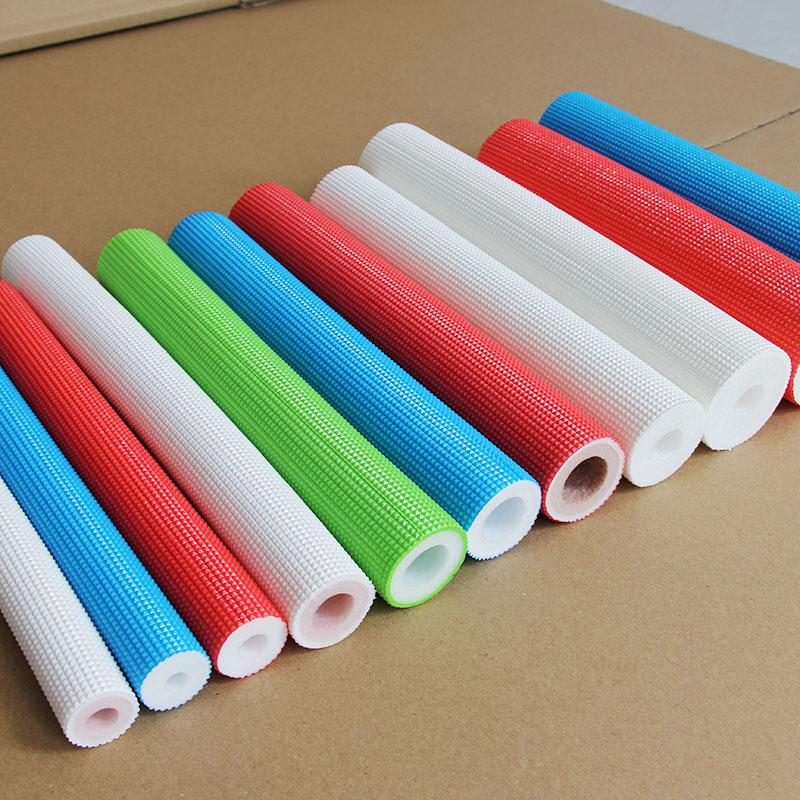

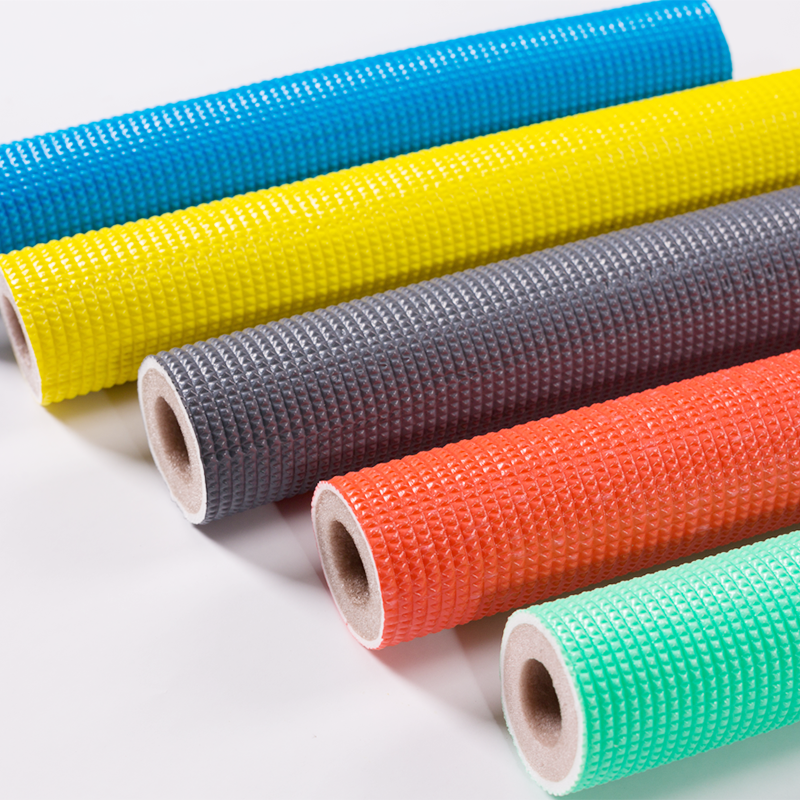

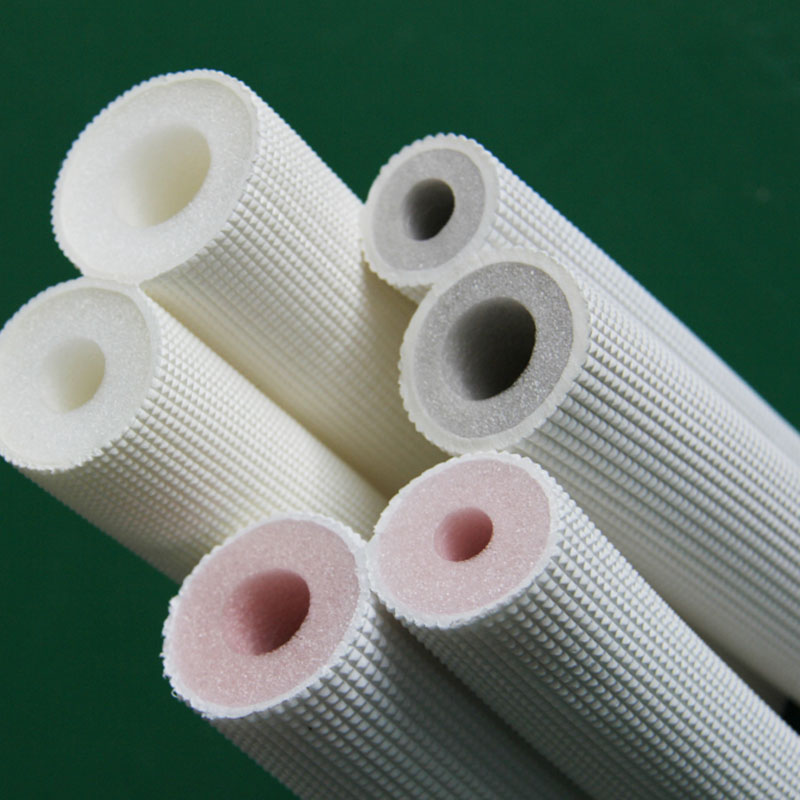

The 3-layer embossed skin insulation pipe is widely used for insulation of air conditioning connecting pipes, solar pipes, underfloor heating pipes, and residential water pipes. It has a three-layer structure, the inner layer is an EPE foam thermal insulation layer, the middle layer is an XPE (Chemical cross-link) or IXPE (Electronic crosslink) foam anti-aging layer, and the outer layer is covered by plastic film to increase beauty and skin toughness. It can be made into single tube and composite double tube, with characteristics such as high temperature resistance and long service life
1,Technical Parameter:
Thermal conductivity | 0.027 - 0.030W/m.K |
Compression strength | 160KPa |
Operating Temperature | -50 - +100℃ |
Fireproof Performance | B2级 |
Elastic Restoring Rate | 90% |
Tensile Strength | 180KPa |
Flame Resistance oxygen index | 18 - 25.5 % |
Density | 20 – 35 Kg/m3 |
2, Single Insulation Tube for Air Conditioner
Copper tube Size mm | Copper Pipe OD. mm | Insulation Tube ID. mm | Normal Wall Thickness mm |
1/4” | 6 / 6.35 | 9 | 8 /10 /13 /15 /20 mm |
3/8” | 9.52 | 12 | |
1/2” | 12 / 12.7 | 15 | |
5/8” | 15.88 | 19 | |
3/4” | 19.05 | 22 | |
7/8” | 22.23 | 25 | |
1” | 25.4 | 28 | |
1-1/8” | 28.58 | 34 | |
1-1/4” | 31.75 | 36 |
* Color and dimension (OD, thickness, Length) to customer’s option
3, Twin Insulation Tube for AirConditioner
Copper tube Size (inch) | Copper Pipe OD. (mm) | Insulation Tube ID (mm) | Normal Wall Thickness (mm) |
1 HP (1/4”+3/8”) | 6.35+9.52 | Ф9＋Ф12 | 8 /10 /13 /15 /20 mm |
1.5 HP (1/4”+1/2”) | 6.35+12.7 | Ф9＋Ф15 | |
2.5 HP (1/4”+5/8”) | 6.35+15.88 | Φ9 + Φ19 | |
3 HP (3/8”+5/8”) | 9.52+15.88 | Ф12＋Ф19 | |
4 HP (3/8”+3/4”) | 9.52+19.05 | Ф12＋Ф22 | |
5 HP (1/2”+3/4”) | 12.7+19.05 | Ф15＋Ф22 |
*Color and dimension (OD, thickness, Length) to customer’s option
4, Insulation Tube for Water Pipeline
Plastic Pipe OD Mm | Insulation Tube ID mm | Insulation Tube Wall thickness mm | Standard Length m |
16 mm | 18 mm | 7 mm | 1.5m, 2m |
20 mm | 22 mm | 7 mm | 1.5m, 2m |
25 mm | 28 mm | 7 mm | 1.5m, 2m |
32 mm | 35 mm | 7 mm | 1.5m, 2m |
40 mm | 43 mm | 7 mm | 1.5m, 2m |
50 mm | 54 mm | 7 mm | 1.5m, 2m |
* Color and dimension (OD, thickness, Length) to customer’s option
