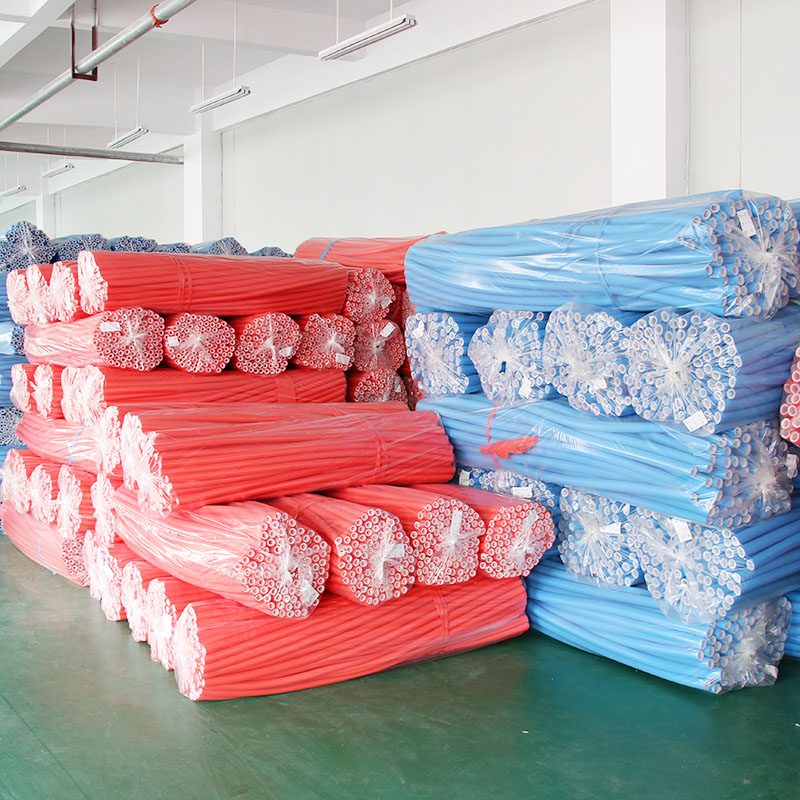

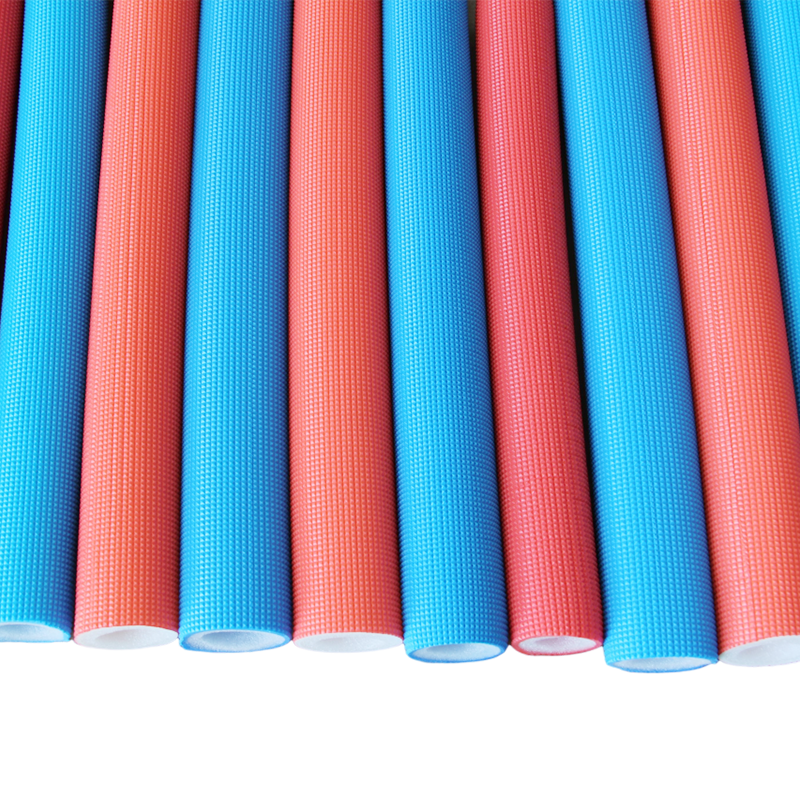

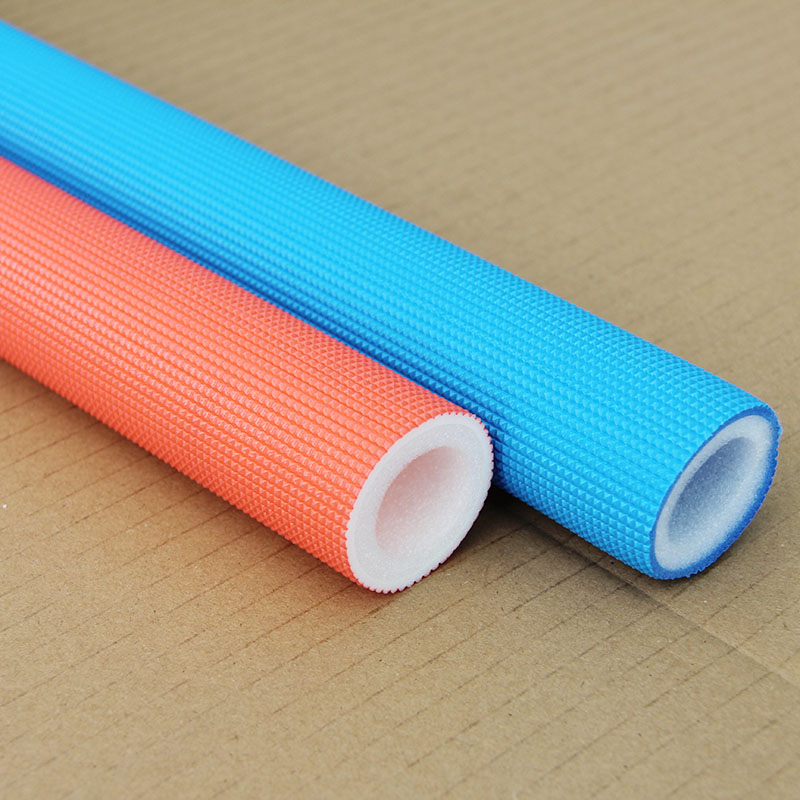

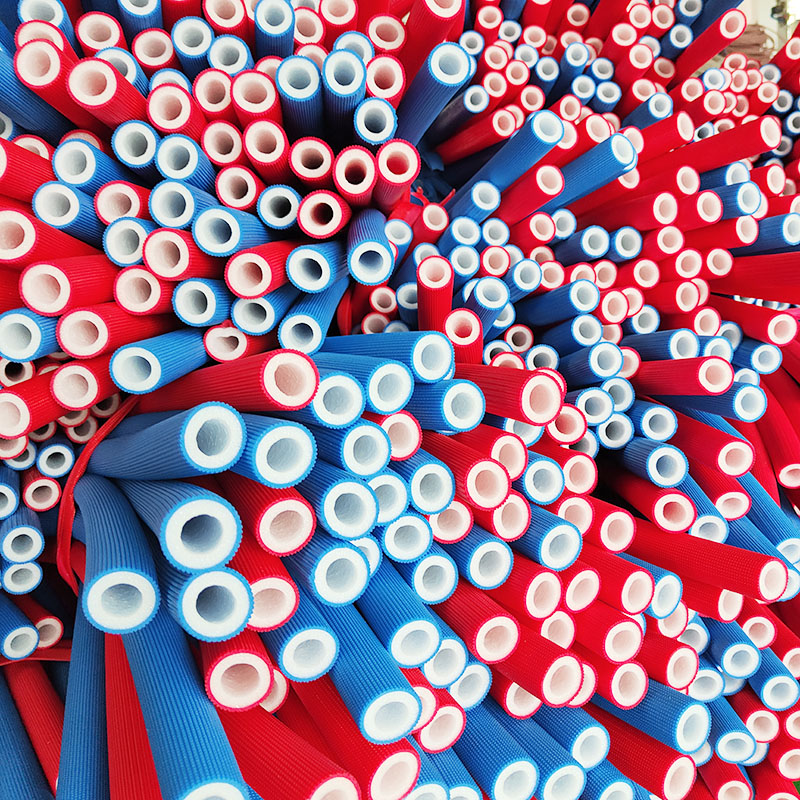

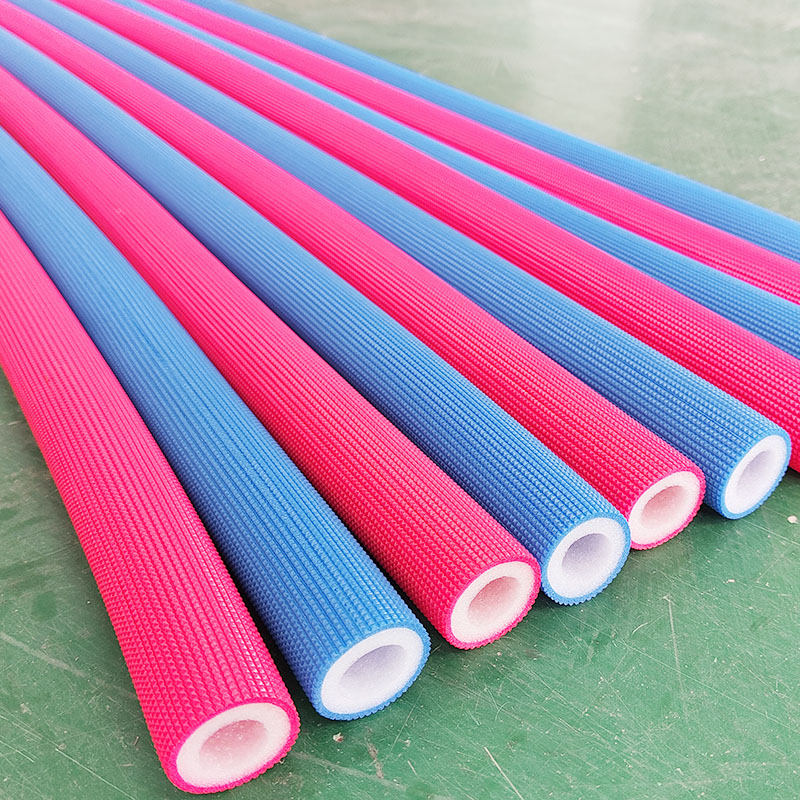

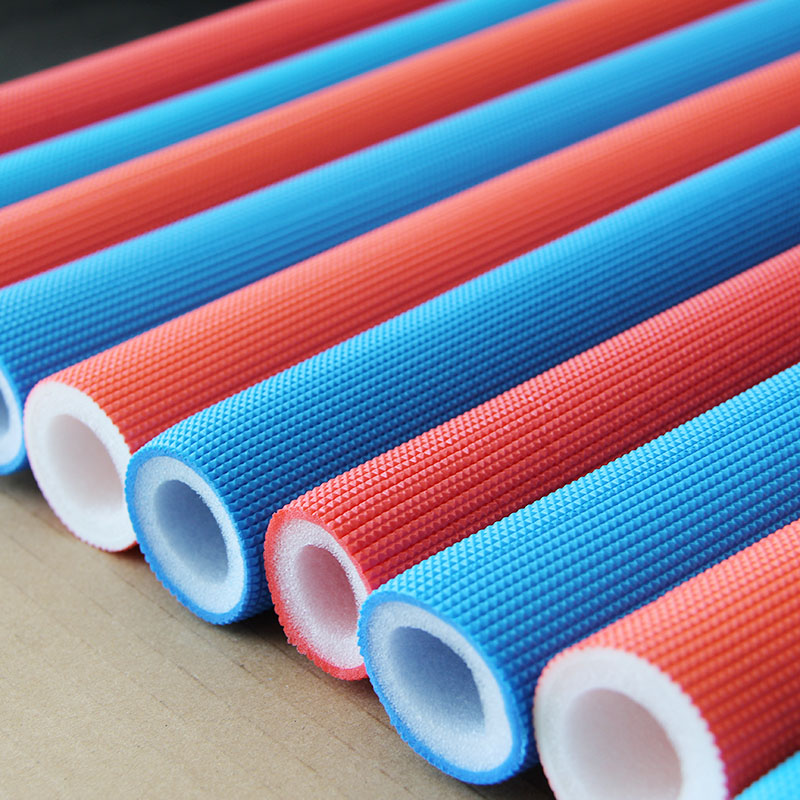

This product is a three-layer embossed composite insulation pipe, mainly used for insulation of underfloor heating cold and hot water pipeline. The preferred colors are red and blue (red tube used for hot water pipelines and blue tube used for return water pipelines). The length is 1.5 meters or 2 meters for each piece. The product is beautiful, environmentally friendly, odorless, and easy to install. It is an ideal insulation product for high-grade house and office decoration.
1, Main Technical Parameters of Underfloor Heating Insulation Tube:
Item | Specification |
Thermal conductivity | 0.027 - 0.030W/m.K |
compression strength | 160KPa |
Operating Temperature | -50 - +100℃ |
Fireproof Performance | B2 |
Elastic Restoring Rate | 90% |
Resistance To Tensile Stress | 180KPa |
Flame Resistance oxygen index | 18 - 25.5 % |
Density | 20 – 35 Kg/m3 |
2, Normal Sizes of Underfloor Heating Insulation Tube
Plastic Pipe OD | Insulation Tube ID | Normal Wall thickness | Standard Length |
16 mm | 18 mm | 7, 10mm | 1.5m, 2m |
20 mm | 22 mm | 7, 10mm | 1.5m, 2m |
25 mm | 28 mm | 7, 10mm | 1.5m, 2m |
32 mm | 35 mm | 7, 10mm | 1.5m, 2m |
40 mm | 43 mm | 7, 10mm | 1.5m, 2m |
50 mm | 54 mm | 7, 10mm | 1.5m, 2m |
* Color and dimension (OD, thickness, Length) to customer’s option
