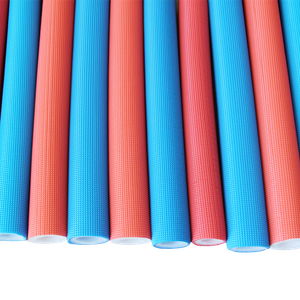

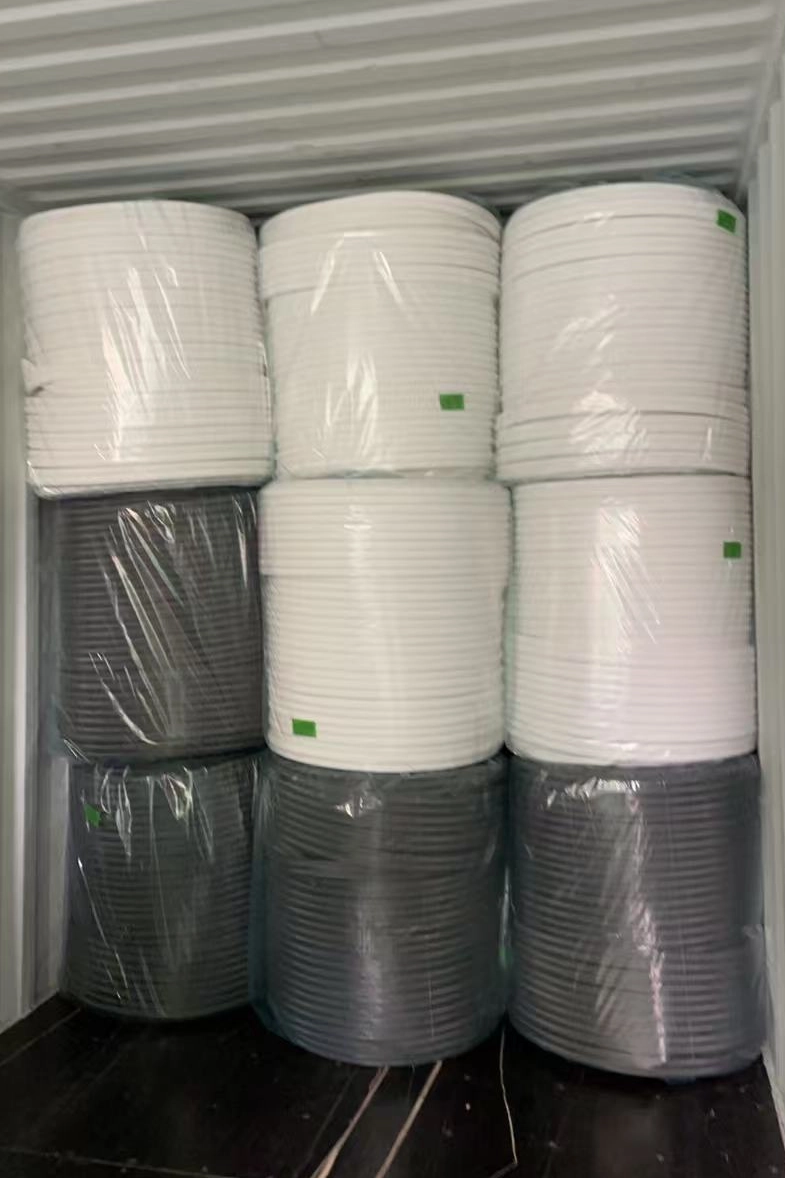

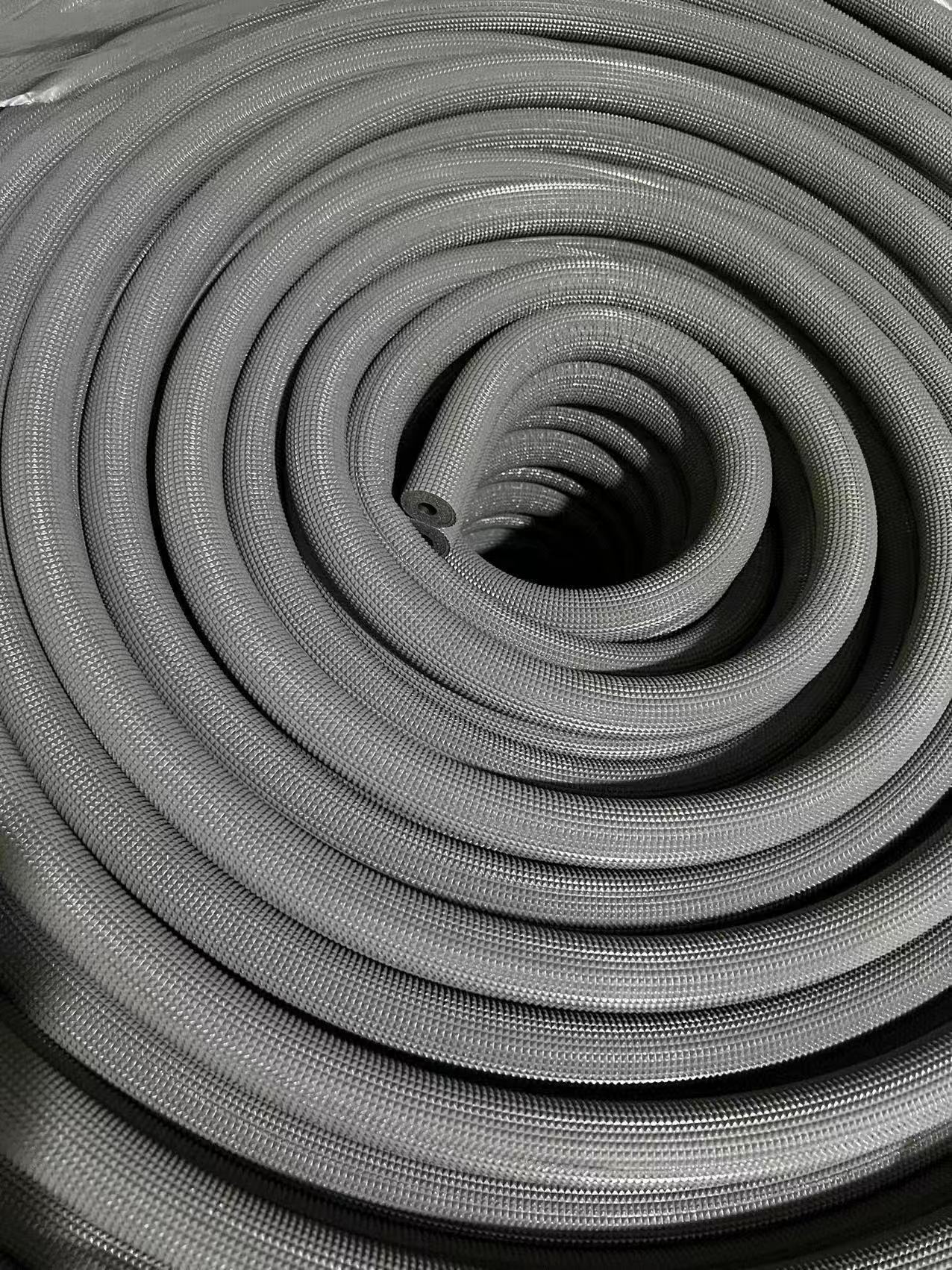

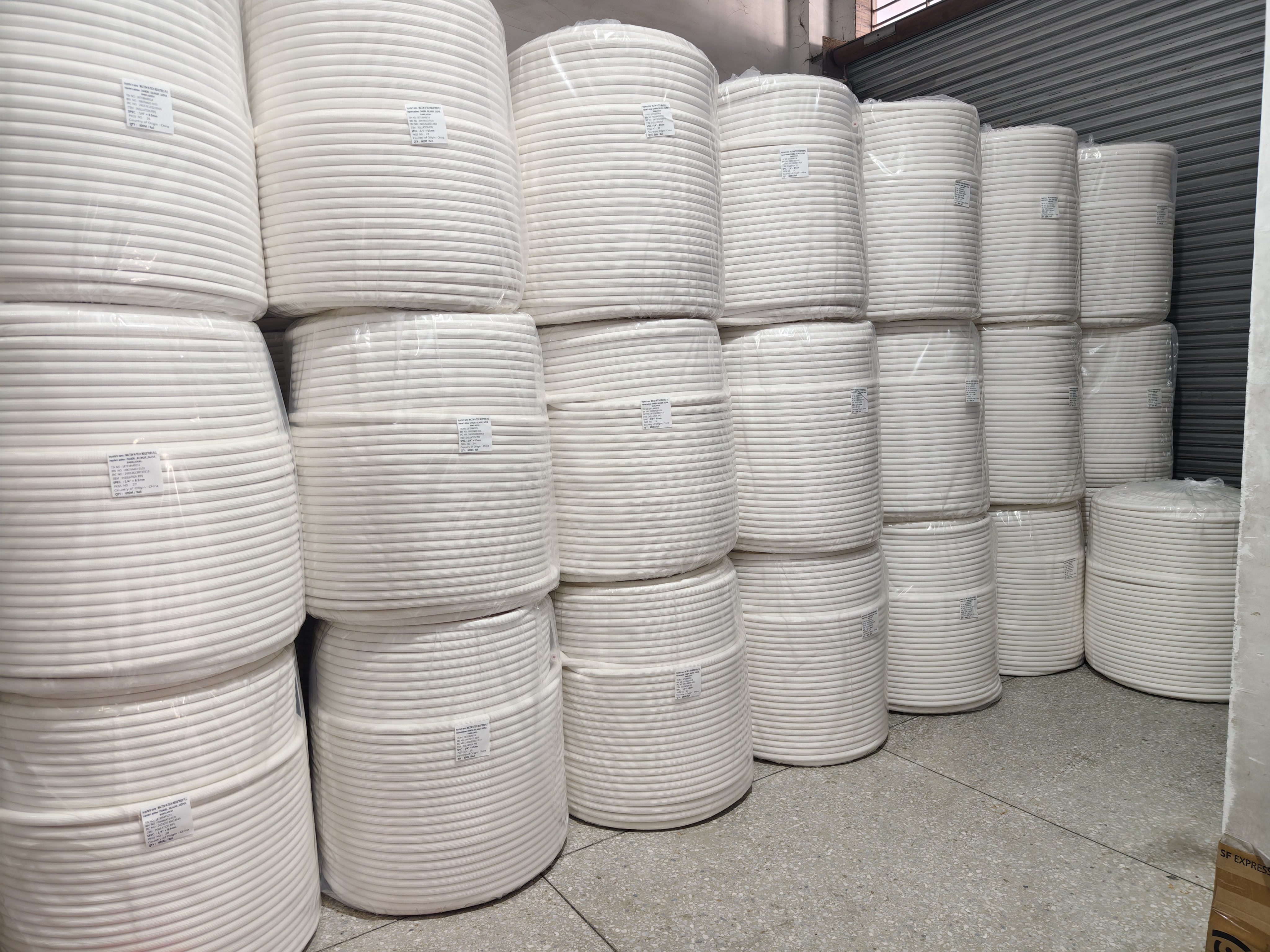

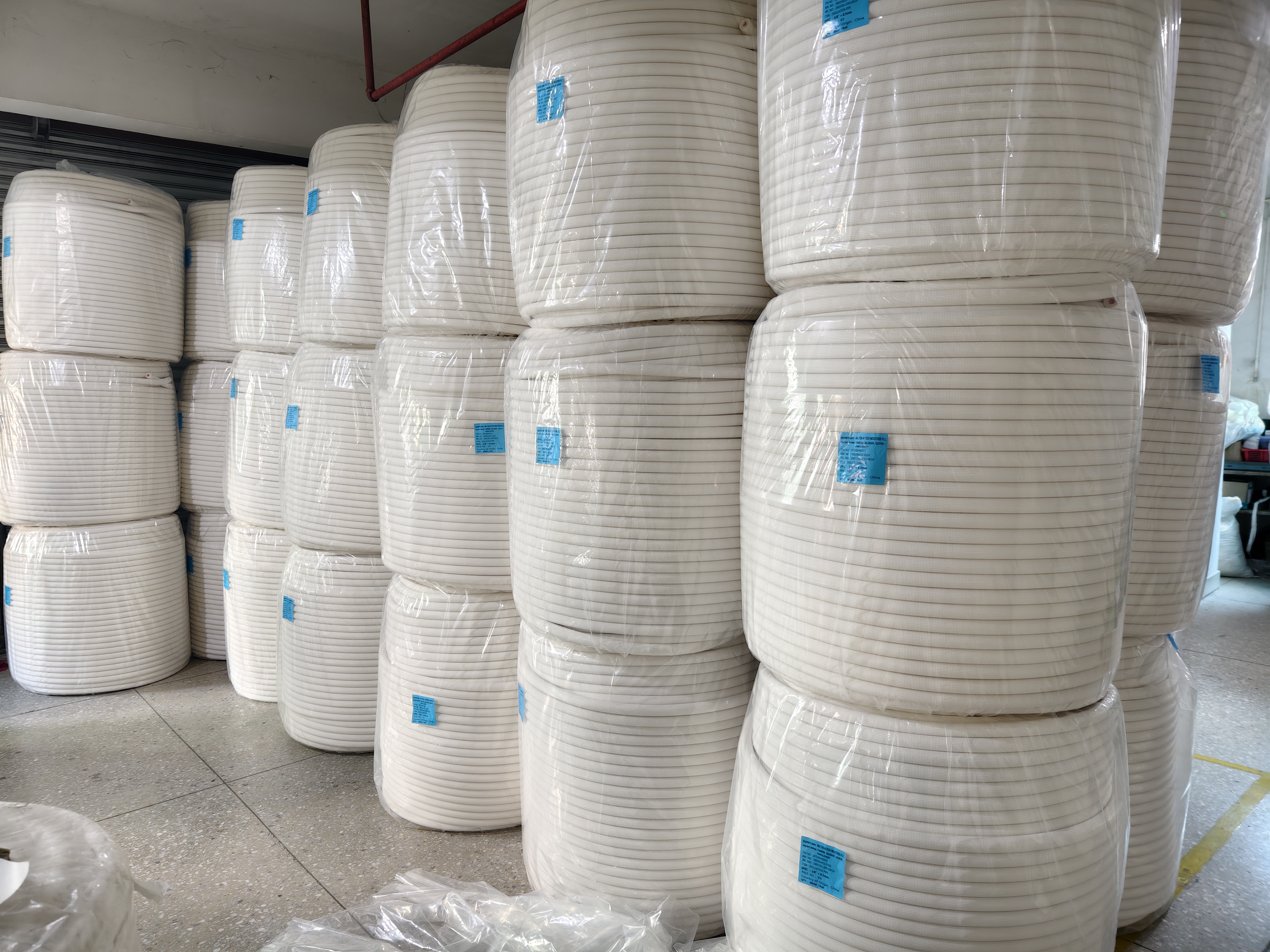

The 3-layer embossed skin insulation pipe is widely used for insulation of air conditioning connecting pipes, solar pipes, underfloor heating pipes, and residential water pipes. lt has a three-layer structure, the inner layer is an EPE foam thermal insulation layer, the middle layer is an XPE (Chemical cross-link) or lXPE (Electronic crosslink) foam anti-aging layer, and the outer layer is covered by plastic film to increase beauty and toughness. It can be made into single tube and composite double tube, with characteristics such as high temperature resistance and long service life. And the large roll packaging of thermal insulation tube has significant advantages in saving space, reducing costs and reducing losses, and is suitable for large-scale transportation and storage.
In the air conditioning system, the insulation pipe plays a crucial role, it is like the "coat" of the air conditioning system, effectively prevent energy loss, improve system efficiency, and prevent condensation water generation.
| Thermal Conductivity | 0.027 - 0.030W/m.K |
| Compression Strength | 160KPa |
| Operating Temperature | -50 - +100℃ |
| Fireproof Performance | B2 |
| Elastic Restoring Rate | 90% |
| Tensile Strength | 180KPa |
| Flame Resistance Oxygen Index | 18 - 25.5% |
| Density | 20 - 35Kg/m3 |
Single Insulation Tube for Air Conditioner
| Copper Pipe Size | Copper Pipe OD.(mm) | Insulation Tube ID.(mm) | Normal Wall Thickness(mm) |
| 1/4'' | 6/6.35 | 9 | 8,10,13,15,20, customized |
| 3/8'' | 9.52 | 12 | |
| 1/2'' | 12/12.7 | 15 | |
| 5/8'' | 15.88 | 19 | |
| 3/4'' | 19.05 | 22 | |
| 7/8'' | 22.23 | 25 | |
| 1'' | 25.4 | 28 | |
| 1-1/8'' | 28.58 | 34 | |
| 1-1/4'' | 31.75 | 36 |
Twin Insulation Tube for Air Conditioner
| Copper Pipe Size | Copper Pipe OD.(mm) | Insulation Tube ID.(mm) | Normal Wall Thickness(mm) |
| 1HP(1/4''+3/8'') | 6.35+9.52 | 9+12 | 8,10,13,15,20, customized |
| 1.5HP(1/4''+1/2'') | 6.35+12.7 | 9+15 | |
| 2.5HP(1/4''+5/8'') | 6.35+15.88 | 9+19 | |
| 3HP(3/8''+5/8'') | 9.52+15.88 | 12+19 | |
| 4HP(3/8''+3/4'') | 9.52+19.05 | 12+22 | |
| 5HP(1/2''+3/4'') | 12.7+19.05 | 15+22 |
The above is the normal size, we can produce according to your requirements.

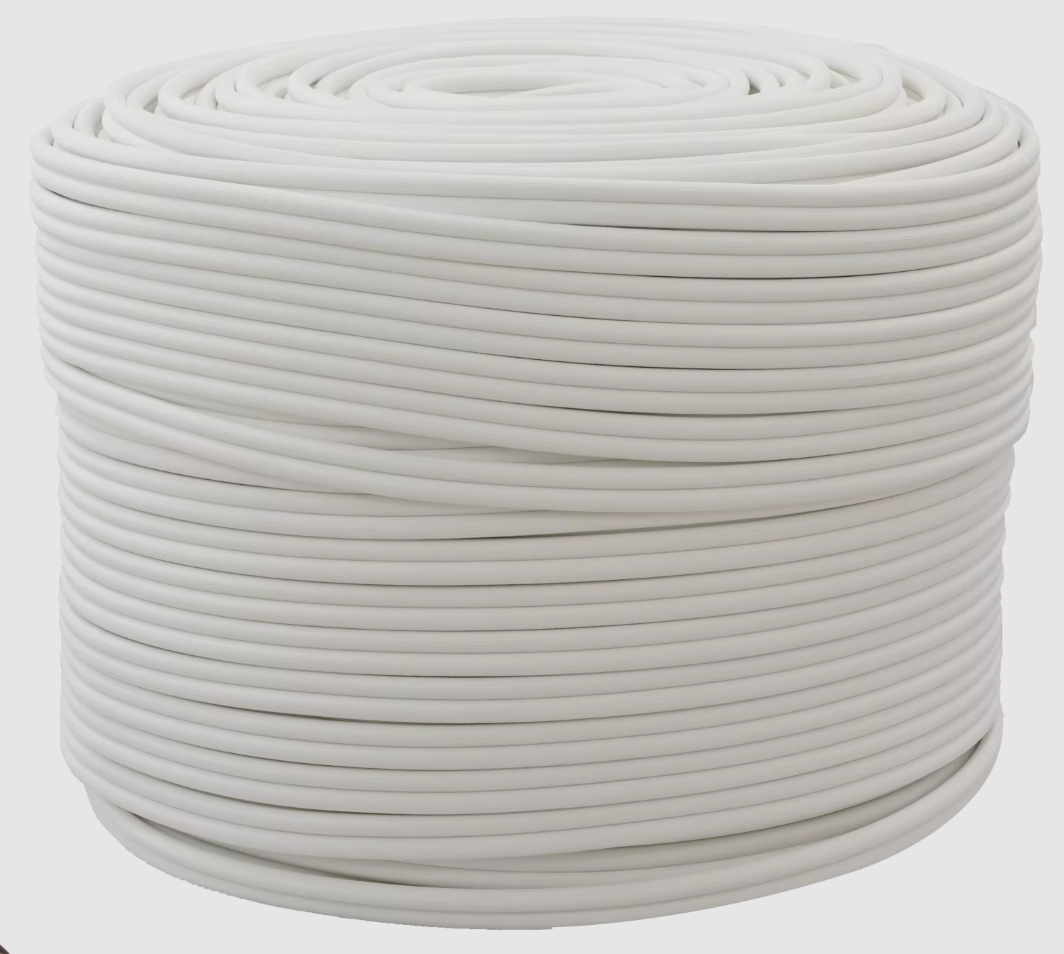

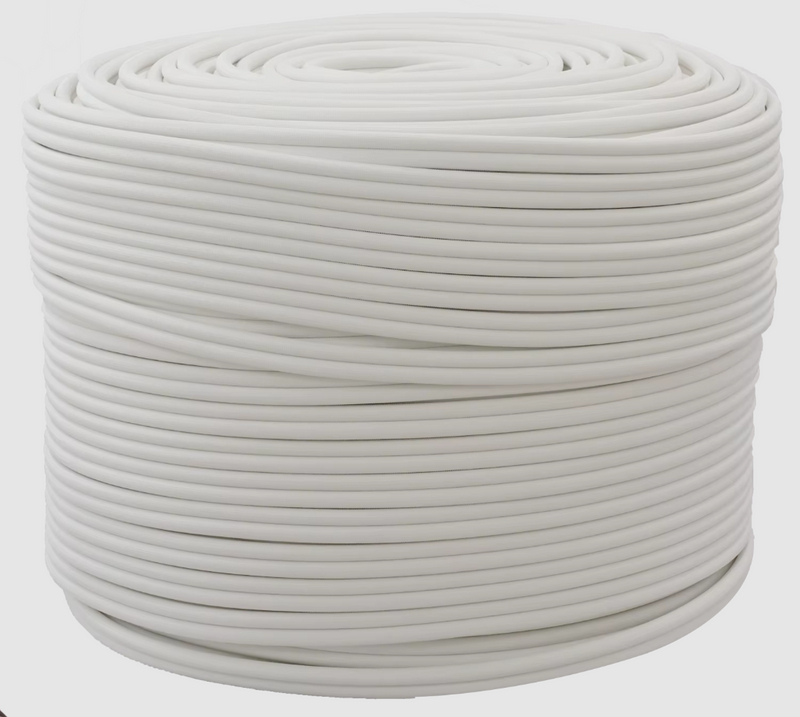

The 3-layer embossed skin insulation pipe is widely used for insulation of air conditioning connecting pipes, solar pipes, underfloor heating pipes, and residential water pipes. lt has a three-layer structure, the inner layer is an EPE foam thermal insulation layer, the middle layer is an XPE (Chemical cross-link) or lXPE (Electronic crosslink) foam anti-aging layer, and the outer layer is covered by plastic film to increase beauty and toughness. It can be made into single tube and composite double tube, with characteristics such as high temperature resistance and long service life. And the large roll packaging of thermal insulation tube has significant advantages in saving space, reducing costs and reducing losses, and is suitable for large-scale transportation and storage.
