Features and Application:

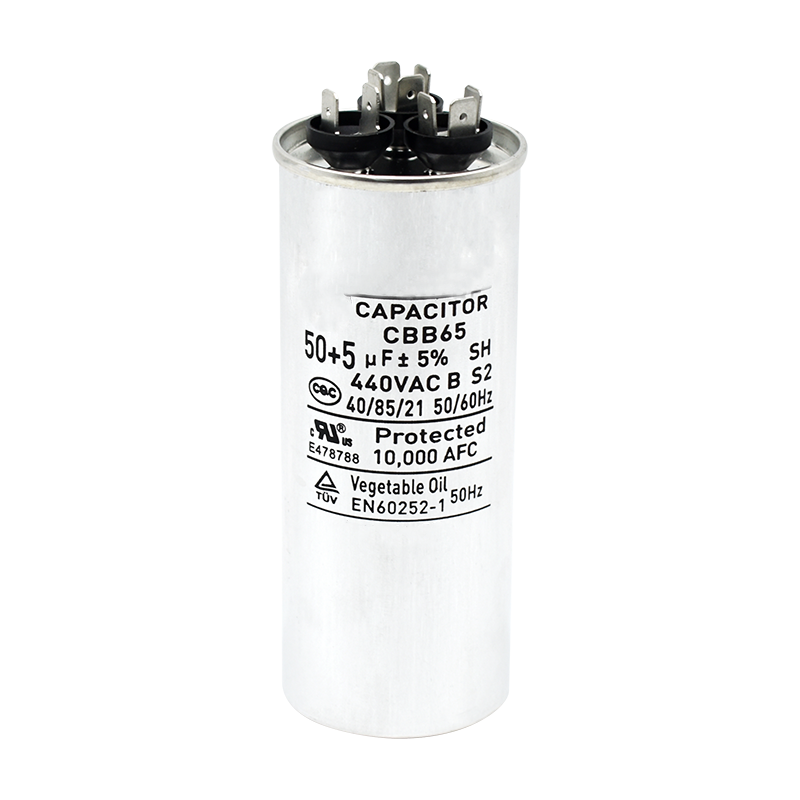

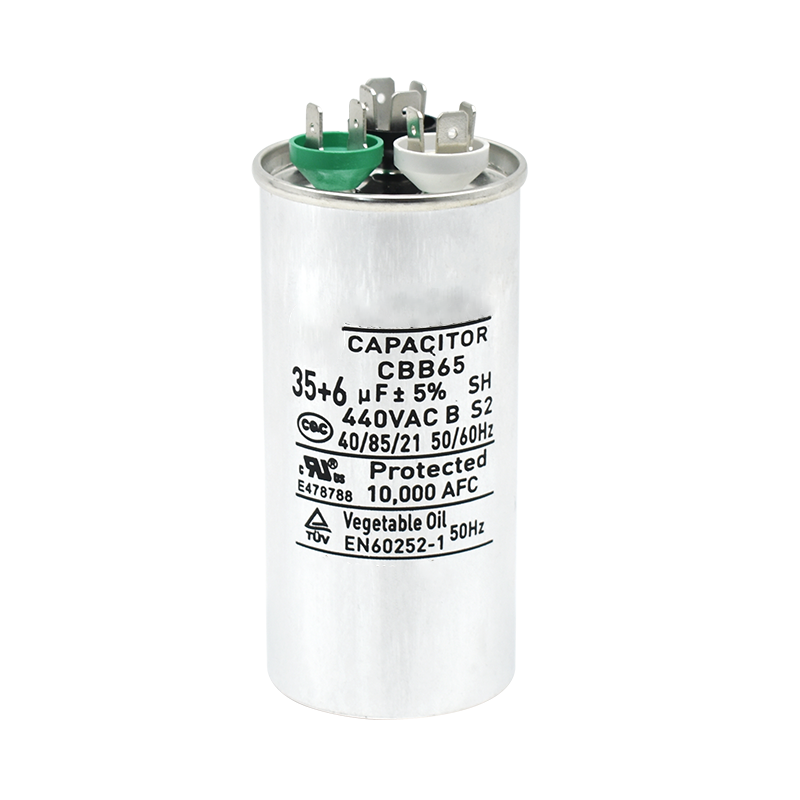

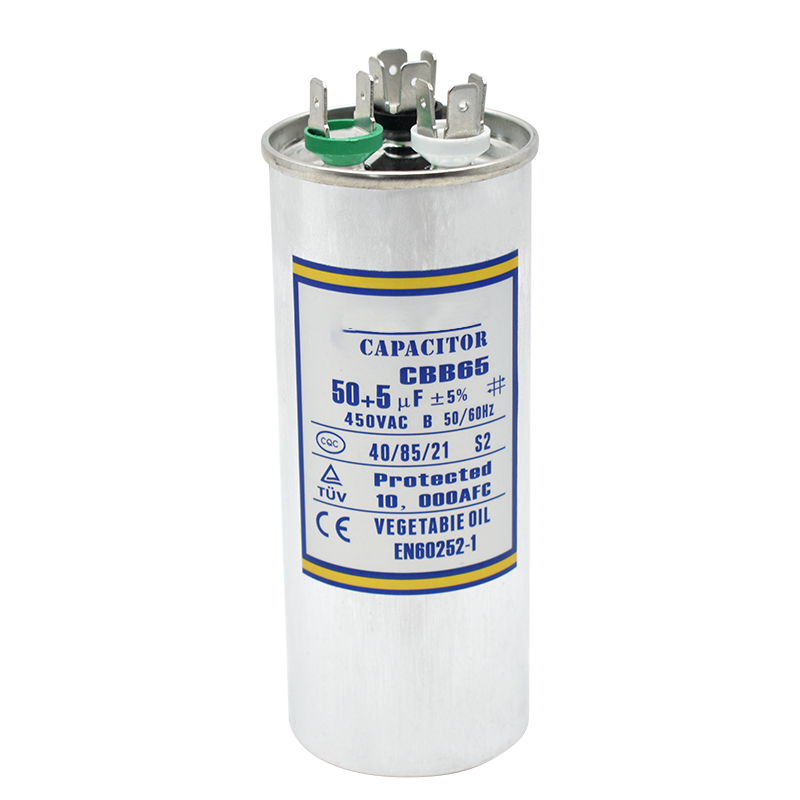

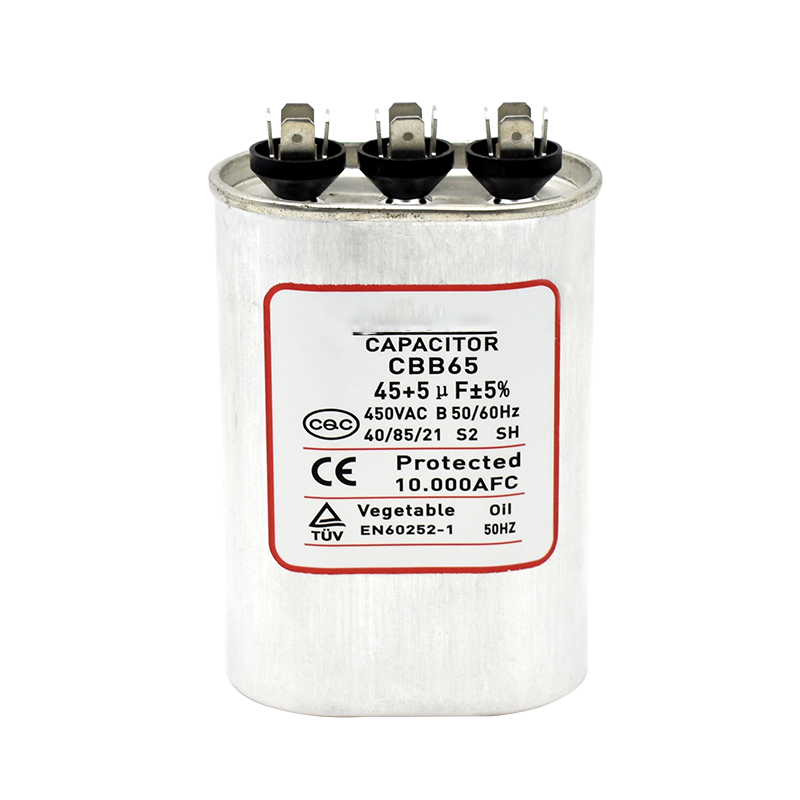

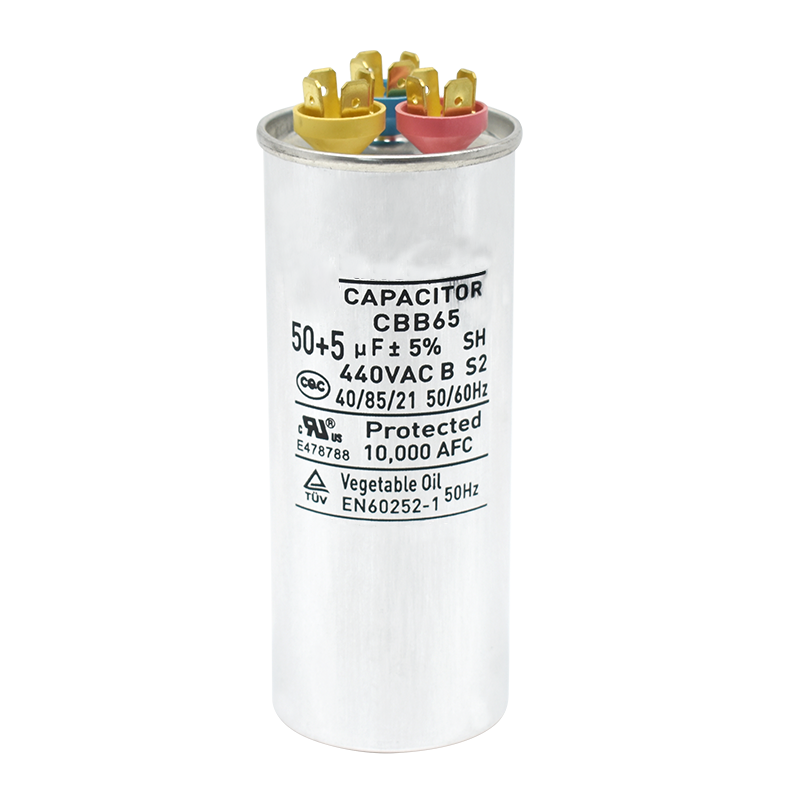

This capacitor is with metal casing, plastic insulation and insulated with oil, it has pressure protection device inside to ensure safety and reliability.
This product combines the compressor capacitor of the air conditioner with the fan capacitor (C is the common terminal, HERM is the compressor terminal, and FAN is the fan terminal). In addition to having all the characteristics of CBB65 capacitors, it is more convenient to install. Suitable for starting and running compressor motors and fan motors.
Technical Parameter：
Ambient Temp.: -40～85℃
Rated Voltage: 370～450VAC
Range of Capacitance: 1+1～80+15μF
Testing Voltage: T-T: 2Un/2S ; T-C:≥2400VAC/2S
Dissipation Factor: tan δ ≤ 0.002 (100hz)
Operating Frequency: 50/60Hz
Executing Standards： IEC60252, UL810, VDE0560-8, GB/T3667。
Capacitance Tolerance: ±5% or fulfilled upon request.
Overall dimension(mm):
Capacitance（μF） | 240V～300V | 350V～400V | 440V～450V | |||
D | H | D | H | D | H | |
15+1.5 | 50 | 55 | 50 | 65 | 50 | 75 |
20+1.5 | 50 | 55 | 50 | 75 | 50 | 85 |
25+3 | 50 | 65 | 50 | 75 | 50 | 95 |
30+5 | 50 | 75 | 50 | 85 | 50 | 105 |
35+5 | 50 | 85 | 50 | 95 | 50 | 120 |
40+5 | 50 | 95 | 50 | 105 | 50 | 120 |
45+5 | 50 | 95 | 50 | 105 | 50 | 125 |
45+7.5 | 50 | 105 | 50 | 120 | 50 | 125 |
50+5 | 50 | 105 | 50 | 120 | 50 | 125 |
50+6 | 50 | 105 | 50 | 120 | 50 | 125 |
50+7.5 | 50 | 105 | 50 | 120 | 50 | 125 |
55+7.5 | 50 | 120 | 50 | 125 | 55 | 125 |
60+7.5 | 50 | 120 | 50 | 125 | 55 | 125 |
65+7.5 | 50 | 125 | 55 | 125 | 60 | 120 |
70+7.5 | 50 | 135 | 55 | 125 | 60 | 125 |
80+10 | 55 | 125 | 60 | 125 | 60 | 135 |
Note:
1. The specifications listed in the table are partial, and other external dimensions can be produced according to customer requirements.
2. Above Data may be changed without notice.
