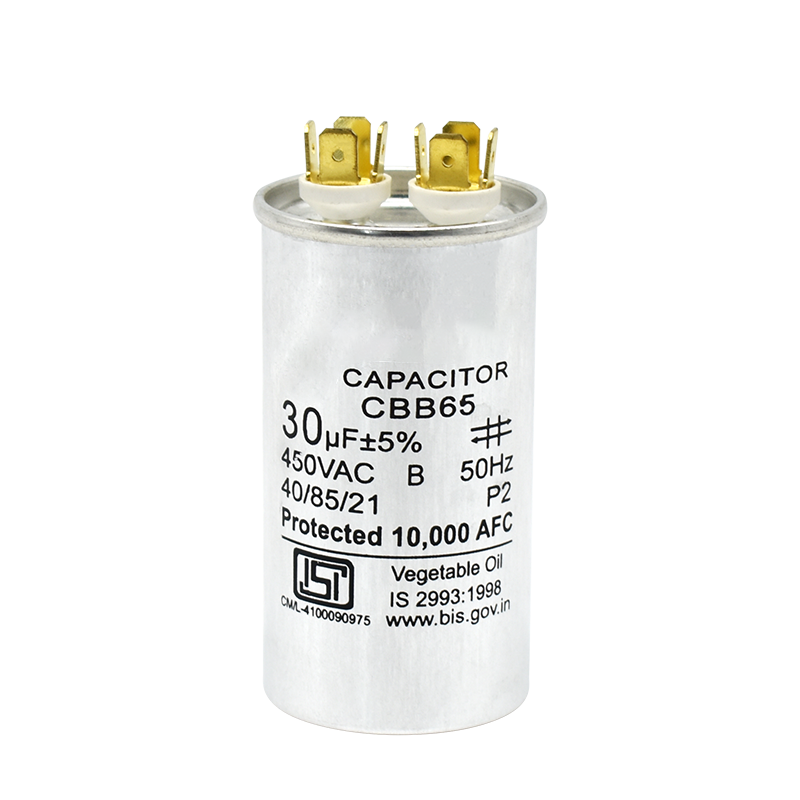

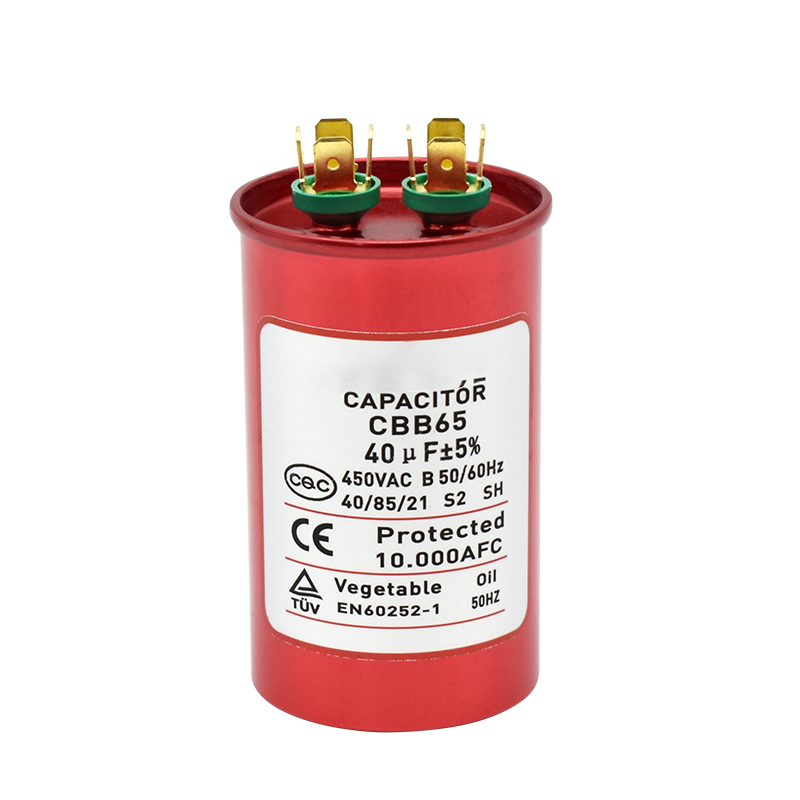

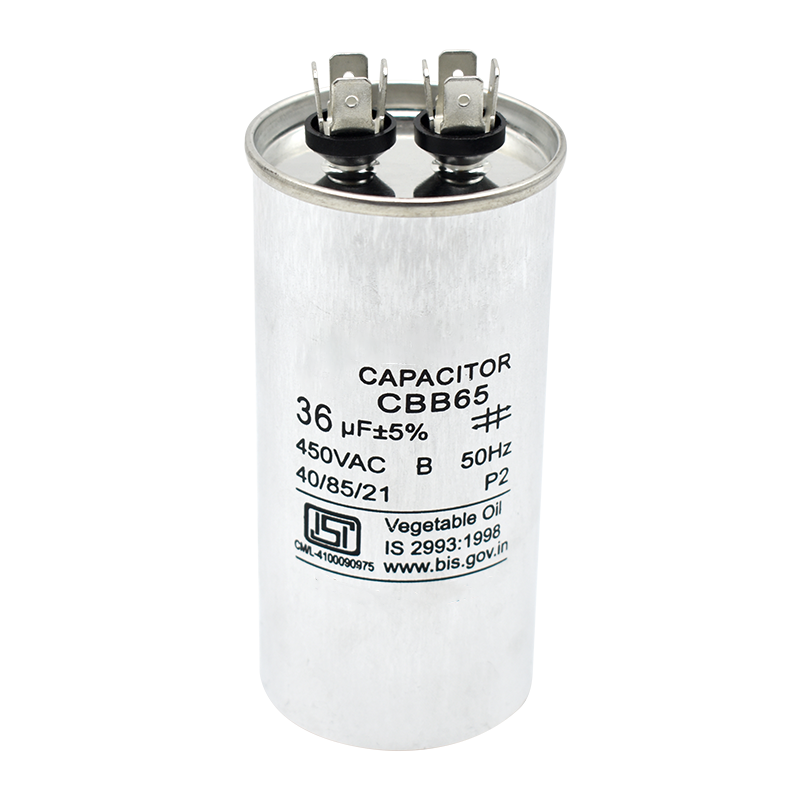

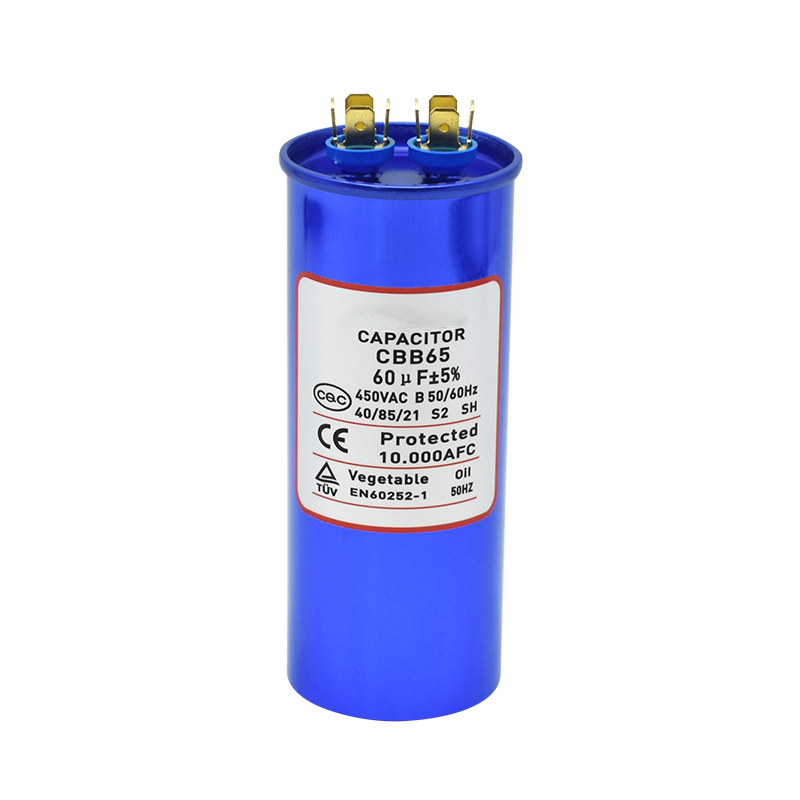

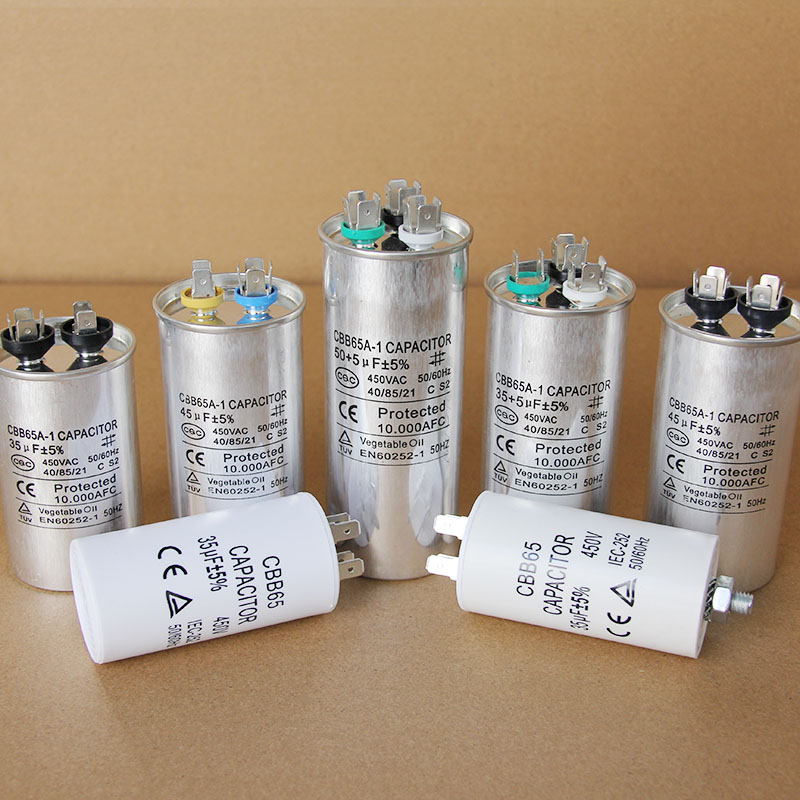

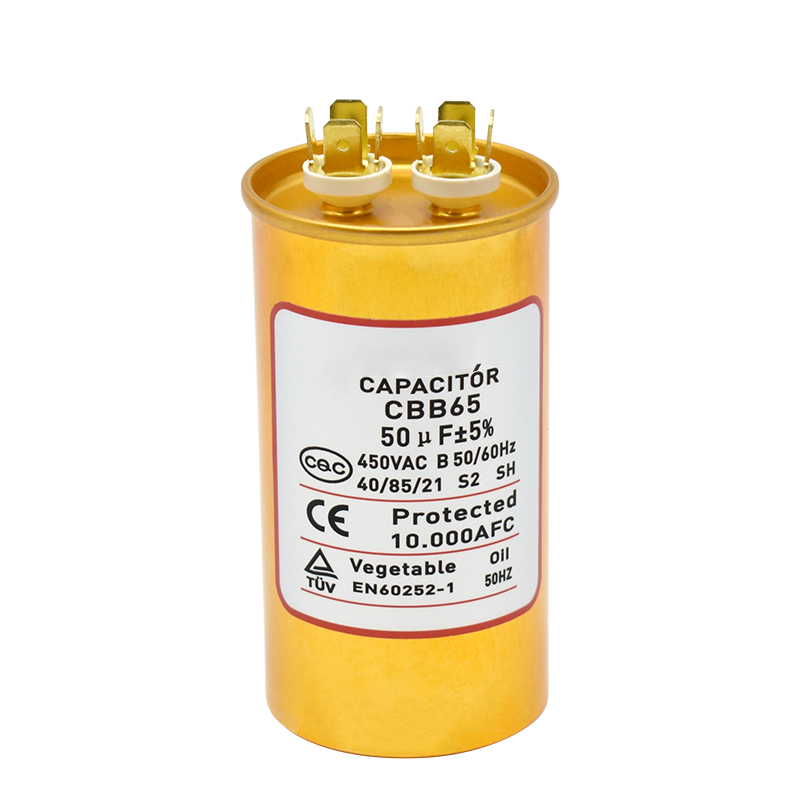

AC Motor Capacitor, Type CBB65-R1 (Metalized Capacitor)

AC Motor Capacitor, Type CBB65-R1 (Metalized Capacitor)

This capacitor is with metal casing, plastic insulation and insulated with oil, it has pressure protection device inside to ensure safety and reliability.


Availability:



Inquire Add to Basket

Product Description

Features and Ppplication:

This capacitor is with metal casing, plastic insulation and insulated with oil, it has pressure protection device inside to ensure safety and reliability.

This product has the advantages of small size, light weight, low loss, high insulation resistance, good self-healing performance, resistance to large current shocks, strong overload capacity, and stable performance. Suitable for starting and running air conditioners, refrigerators, motors, compressors, etc.

Technical Parameter:

Ambient Temp.: -40～85℃

Rated Voltage: 150～500VAC

Range of Capacitance: 1～100μF

Testing Voltage: T-T: 2Un/2S ; T-C:≥2400VAC/2S

Dissipation Factor: tan δ ≤ 0.002 (100hz)

Operating Frequency: 50/60Hz

Executing Standards： IEC60252, UL810, VDE0560-8, GB/T3667

Capacitance Tolerance: ±5% or fulfilled upon request.

Overall Dimension (mm):

Capacitance（μF）	240V～300V		350V～400V		440V～450V
Capacitance（μF）	D	H	D	H	D	H
2	40	55	40	55	40	55
3	40	55	40	55	40	55
4	40	55	40	55	40	55
5	40	55	40	55	40	55
7.5	40	55	40	65	40	65
10	40	55	40	55	40	65
12.5	40	55	40	65	40	75
15	40	55	40	65	40	75
17.5	40	65	40	75	40	75
20	40	75	45	75	50	65
25	40	75	45	85	50	75
30	45	75	50	75	50	85
35	45	75	50	75	50	85
40	45	85	50	85	50	100
45	45	100	50	100	50	110
50	45	100	50	100	50	110
55	50	90	50	110	50	125
60	50	100	50	125	50	125
65	50	110	50	125	55	110
70	50	125	55	110	55	125
80	50	125	55	125	60	125
100	55	125	60	125	60	140
