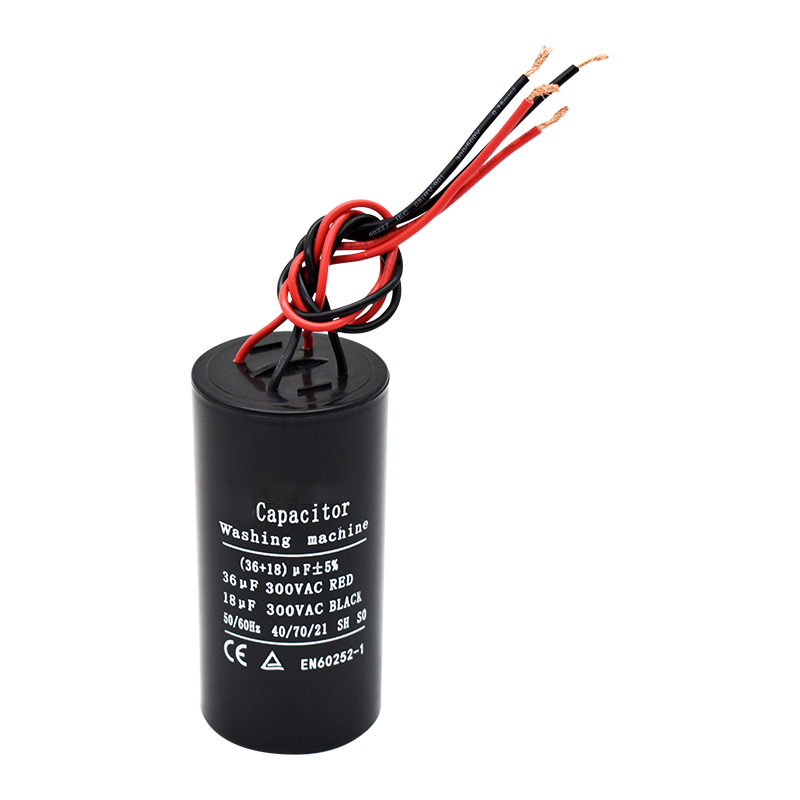

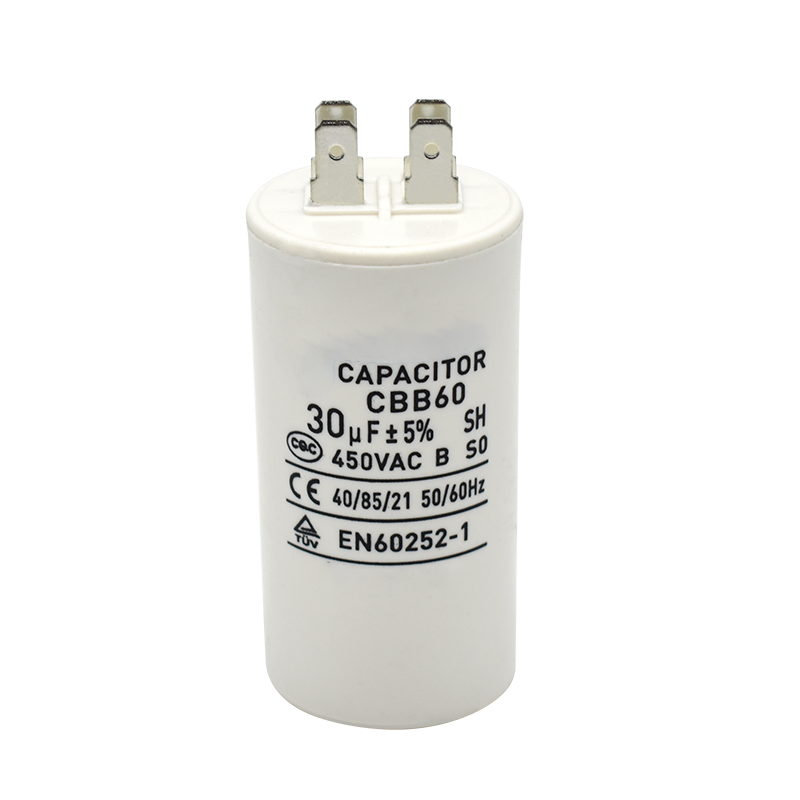

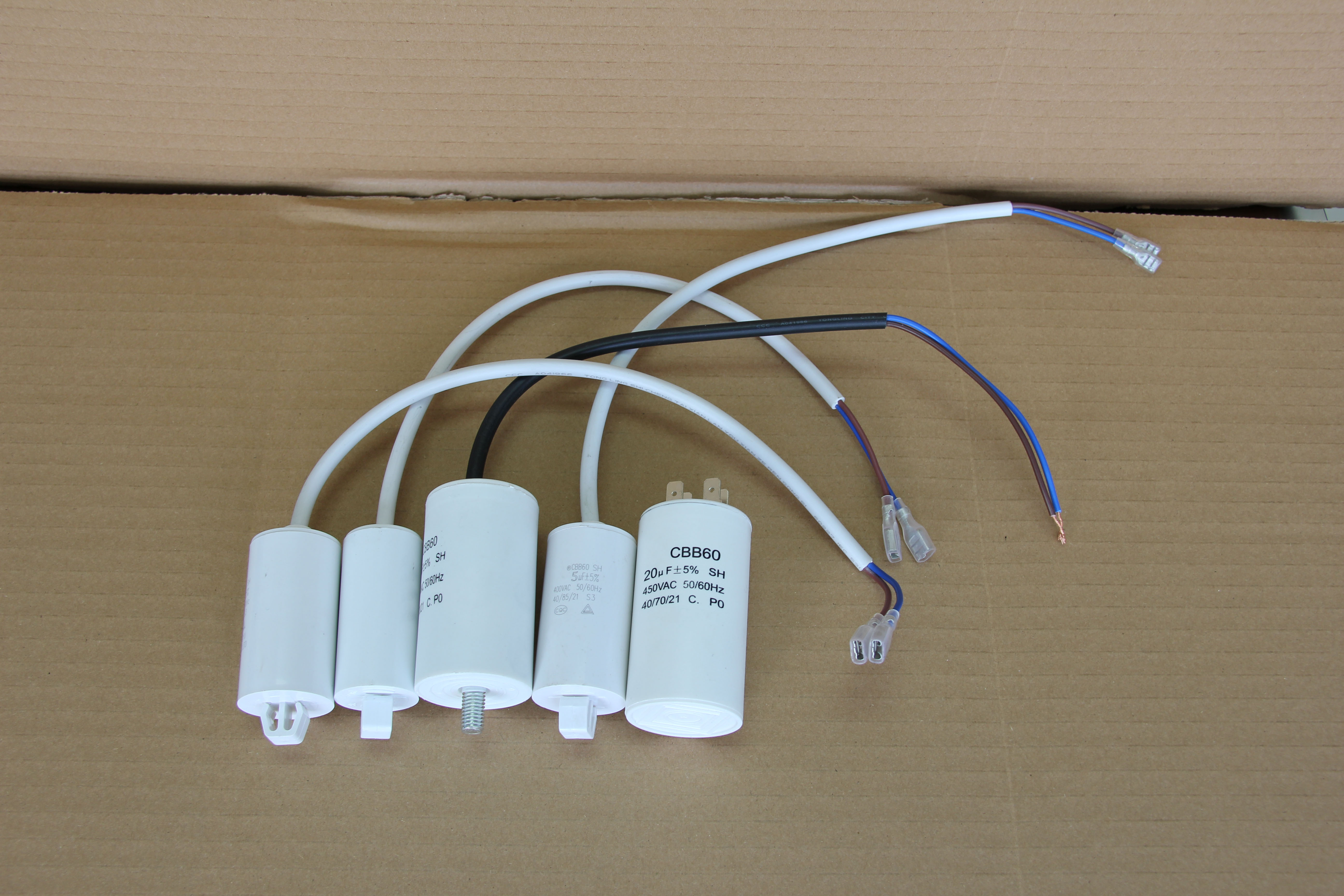

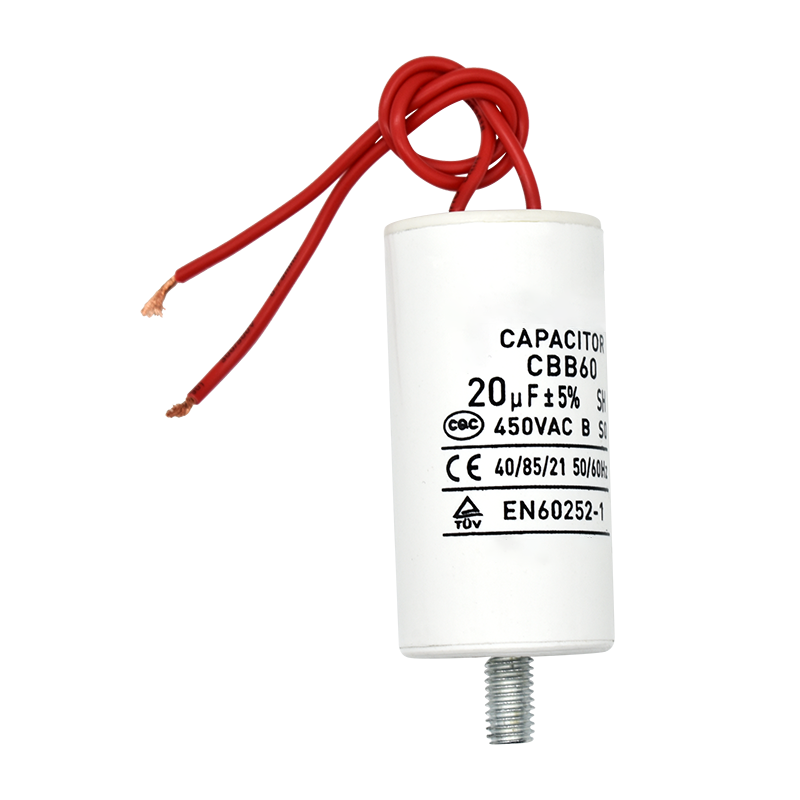

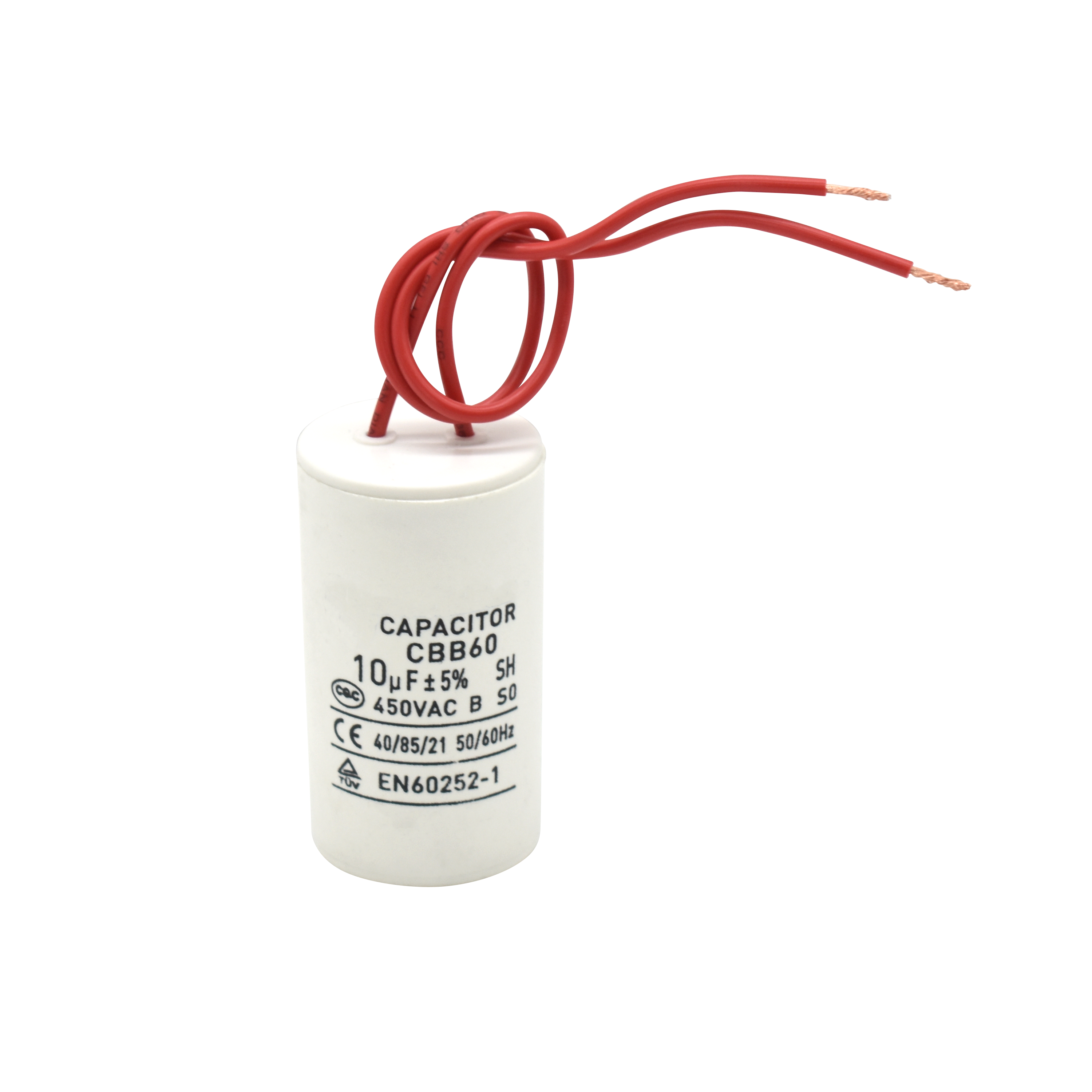

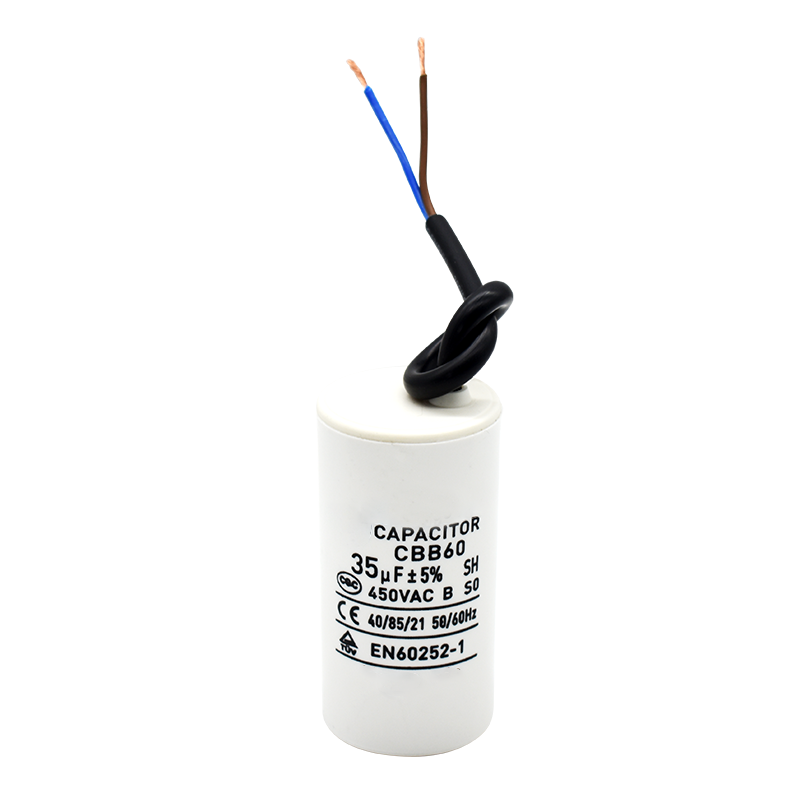

Features and Application:
With plastic insulation shell and epoxy resin sealed; or with metal casing and impregnated with vegetable oil.
This capacitor has the characteristics of low loss, high insulation resistance, good self-healing ability, resistance to large current shocks, strong overload capacity, and stable performance. Suitable for washing machines, split horse-power motors, water pumps, gasoline generators, etc., it helps to start and run electric motors.
Technical Parameter：
Ambient Temp.: -40～85℃
Rated Voltage: 110～500VAC
Range of Capacitance: 1～100μF
Testing Voltage: T-T: 2Un/2S ; T-C: ≥2400VAC/2S
Dissipation Factor: tan δ ≤ 0.002 (100hz)
Operating Frequency: 50/60Hz
Executing Standards：GB/T3667, IEC60252, UL810, VDE0560-8。
Capacitance Tolerance: ±5% or fulfilled upon request.
Overall Dimensions (mm):
Capacitance （μF） | 240V～300V | 350V～400V | 440V～450V | |||
D | H | D | H | D | H | |
2 | 25 | 50 | 25 | 50 | 25 | 50 |
5 | 25 | 50 | 30 | 50 | 30 | 60 |
7.5 | 30 | 50 | 30 | 60 | 32 | 60 |
10 | 30 | 60 | 35 | 60 | 35 | 70 |
15 | 34 | 60 | 35 | 70 | 38 | 70 |
20 | 35 | 70 | 38 | 70 | 40 | 70 |
25 | 42 | 70 | 42 | 80 | 45 | 70 |
30 | 42 | 70 | 42 | 80 | 45 | 90 |
35 | 42 | 80 | 42 | 90 | 45 | 90 |
40 | 42 | 80 | 42 | 90 | 45 | 90 |
45 | 42 | 90 | 45 | 90 | 50 | 90 |
50 | 45 | 90 | 45 | 90 | 50 | 90 |
55 | 45 | 90 | 50 | 90 | 50 | 100 |
60 | 50 | 90 | 50 | 100 | 50 | 120 |
65 | 50 | 100 | 50 | 100 | 50 | 120 |
70 | 50 | 100 | 50 | 120 | 55 | 120 |
80 | 50 | 120 | 55 | 120 | 60 | 120 |
90 | 50 | 120 | 55 | 120 | 60 | 120 |
100 | 55 | 120 | 60 | 120 | 60 | 120 |
10+4 | 42 | 80 | 50 | 80 | 50 | 80 |
12+5 | 42 | 80 | 50 | 80 | 50 | 80 |
12+6 | 42 | 80 | 50 | 80 | 50 | 80 |
14+5 | 42 | 80 | 50 | 80 | 50 | 80 |
14+6 | 42 | 80 | 50 | 80 | 50 | 80 |
Note:
1. The specifications listed in the table are partial, and other external dimensions can be produced according to customer requirements.
2. Above Data may be changed without notice.
