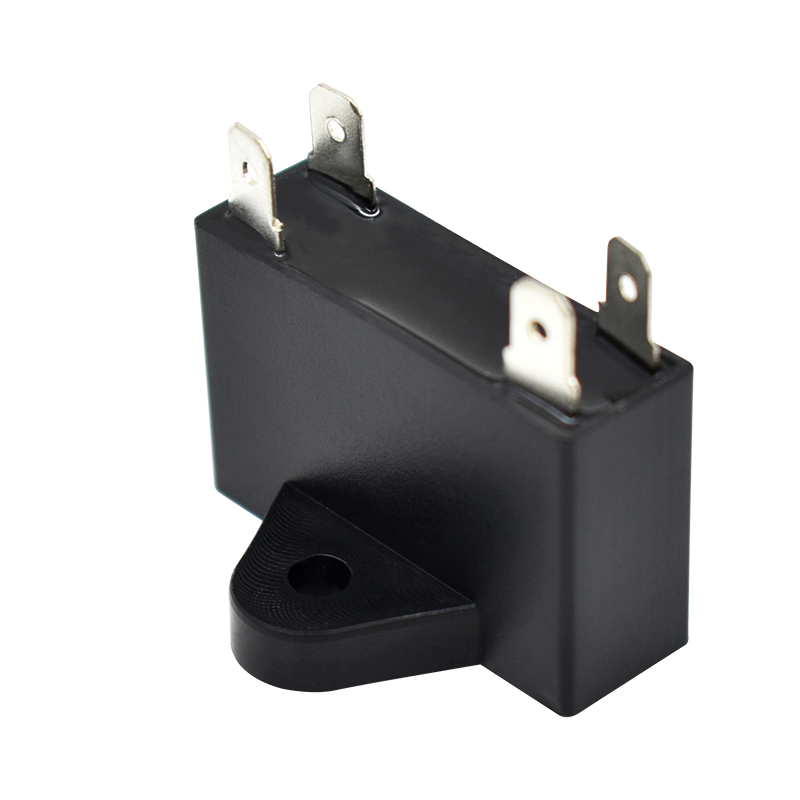

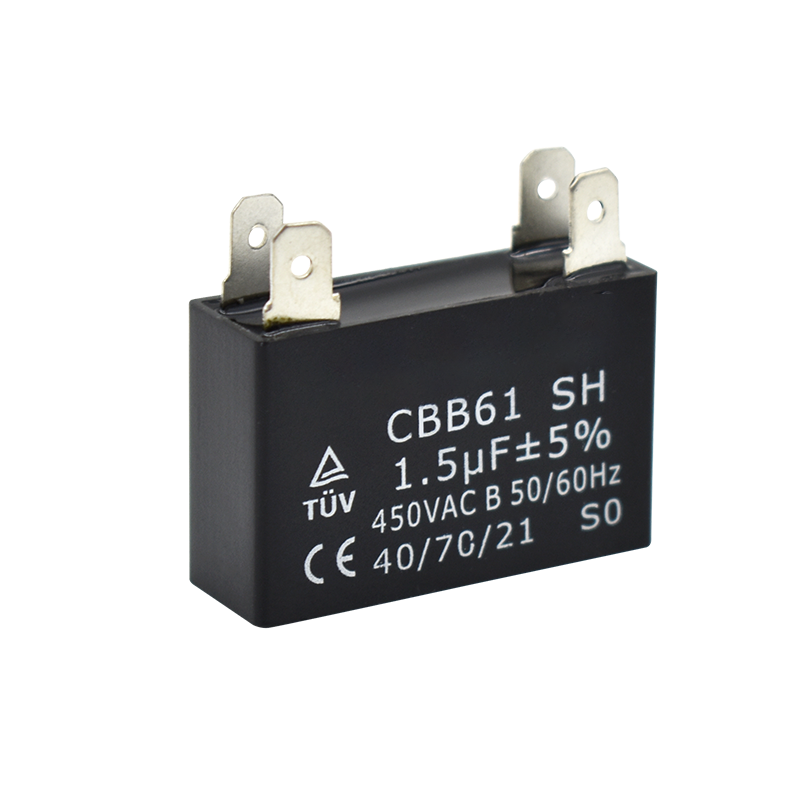

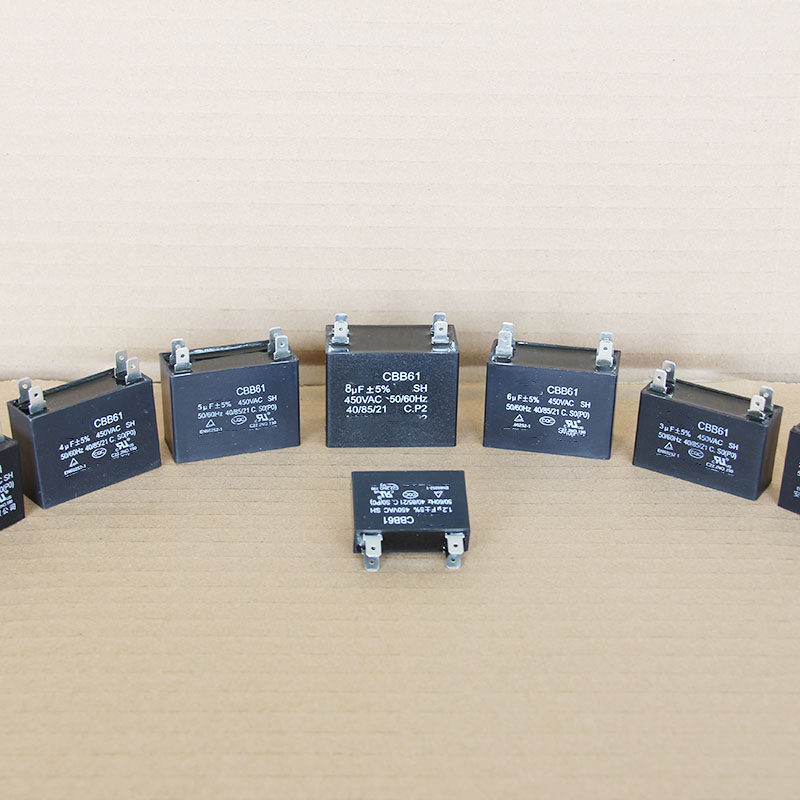

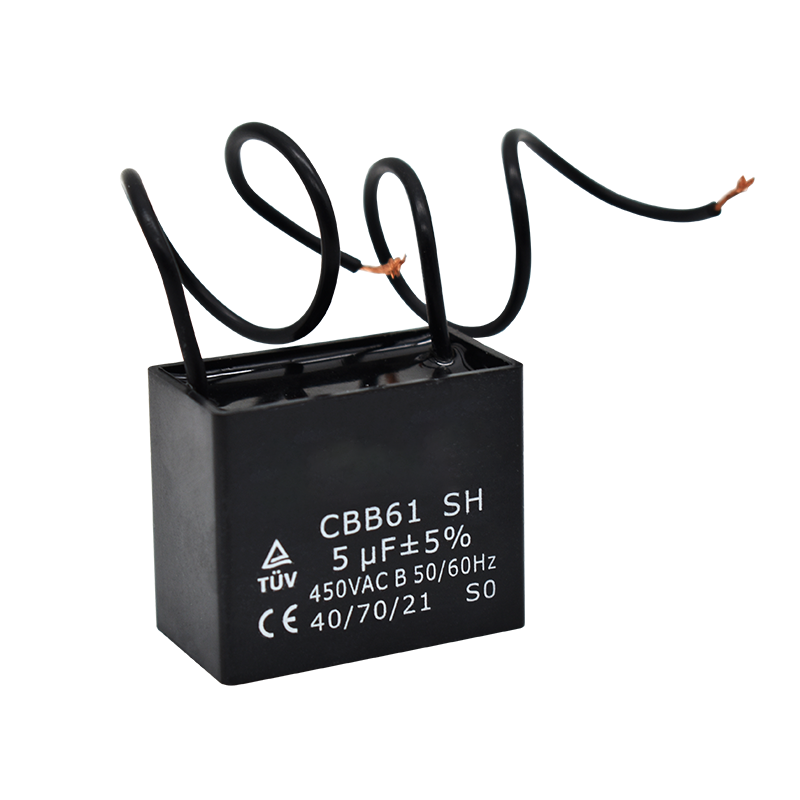

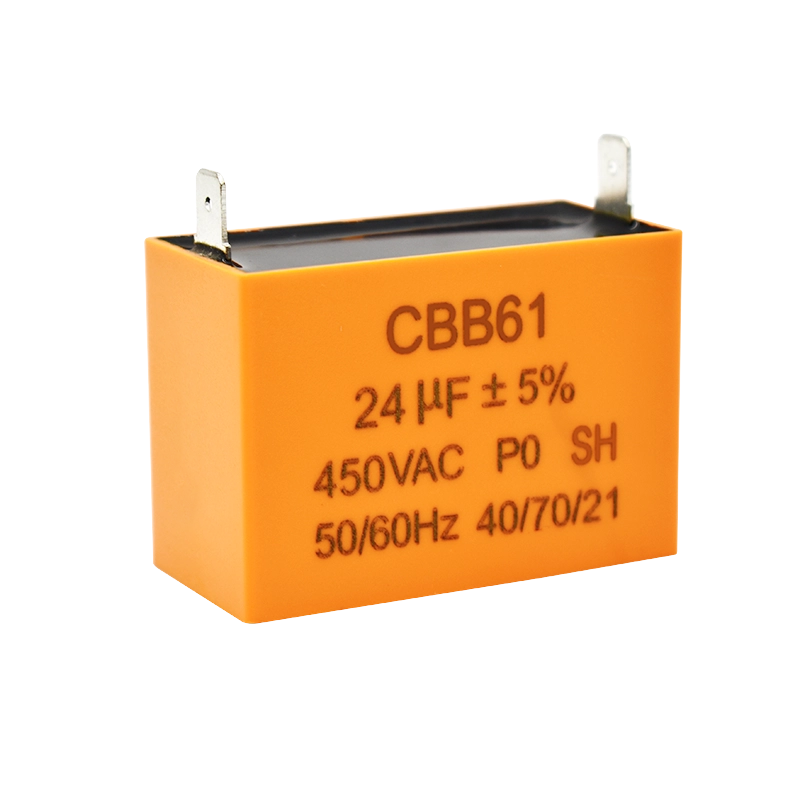

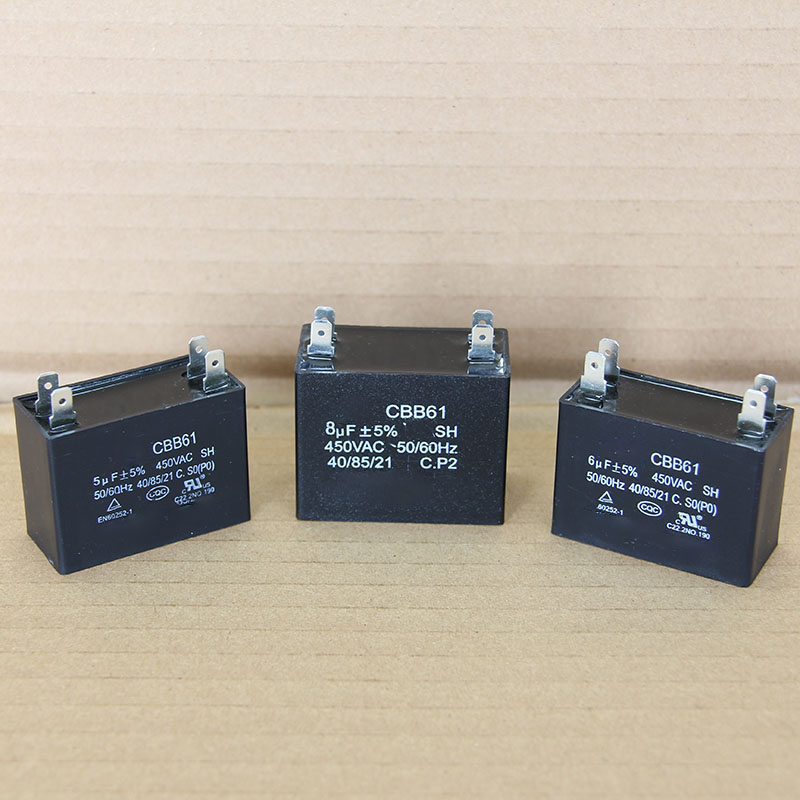

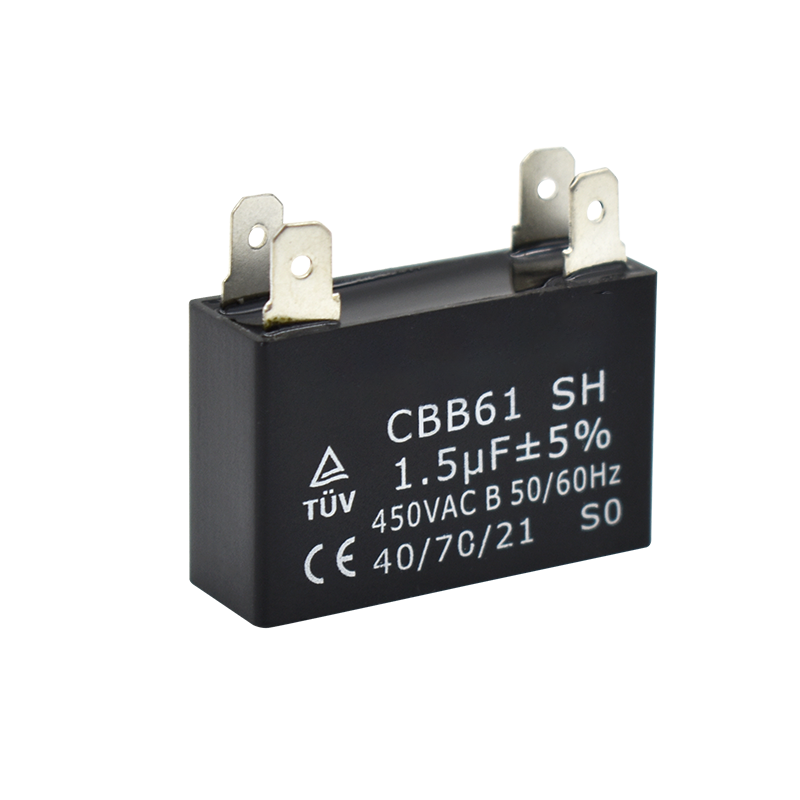

AC Motor Capacitor, Type CBB61 (Metalized Capacitor)

AC Motor Capacitor, Type CBB61 (Metalized Capacitor)

With plastic insulation shell and epoxy resin sealed.

This product has the characteristics of low loss, high insulation resistance, good self-healing, resistance to large current shocks, strong overload capacity, and stable performance. Suitable for electric fans, exhaust fans, electric water pumps, electric sewing machines, gasoline generators, etc., helping to start and run electric motors.


Availability:



Inquire Add to Basket

Product Description

Features and Application:

With plastic insulation shell and epoxy resin sealed.

This product has the characteristics of low loss, high insulation resistance, good self-healing, resistance to large current shocks, strong overload capacity, and stable performance. Suitable for electric fans, exhaust fans, electric water pumps, electric sewing machines, gasoline generators, etc., helping to start and run electric motors.

Technical Parameter：

Ambient Temp.: -40～85℃

（VAC）Rated Voltage: 110～500VAC

（μF）Range of Capacitance: 0～30μF

（VAC）Testing Voltage: T-T: 2Un/2S

Dissipation Factor: tan δ ≤ 0.002 (100hz)

Operating Frequency: 50/60Hz

Executing Standards：GB/T3667.1-2005, IEC60252, UL810, VDE0560-8。

Capacitance Tolerance: ±5% or fulfilled upon request.

Overall Dimensions (mm):

Capacitance（μF）	240V～300V			350V～400V			440V～450V
Capacitance（μF）	L	B	H	L	B	H	L	B	H
1	36	12	23	36	12	23	36	12	23
1.2	36	12	23	36	12	23	36	12	23
1.5	36	12	23	36	12	23	36	12	23
1.8	36	12	23	37	15	26	37	15	26
2	36	12	23	37	15	26	37	15	26
2.5	37	15	26	37	15	26	38	18	28
3	37	15	26	38	18	28	38	18	28
3.5	37	15	26	38	18	28	47	18	29
4	38	18	28	38	18	28	47	18	29
4.5	38	18	28	47	18	29	47	18	34
5	38	18	28	47	18	29	47	18	34
6	47	18	29	47	18	34	47	22	34
7/7.5	47	18	29	47	22	34	48	26	38
8	57	18	32	47	22	34	48	26	38
10	57	18	32	57	21	35	58	23	37
12	57	21	35	58	23	37	58	28	40
14	57	21	35	58	23	37	58	28	40
15	57	21	35	58	28	40	58	28	40
16	58	23	37	58	28	40	58	30	48
18	58	23	37	58	28	40	58	30	48
20	58	28	40	58	30	48	58	40	45
24	58	28	40	58	40	45	58	40	45
